Product Description
BRAND: Hella Marine
DESCRIPTION:

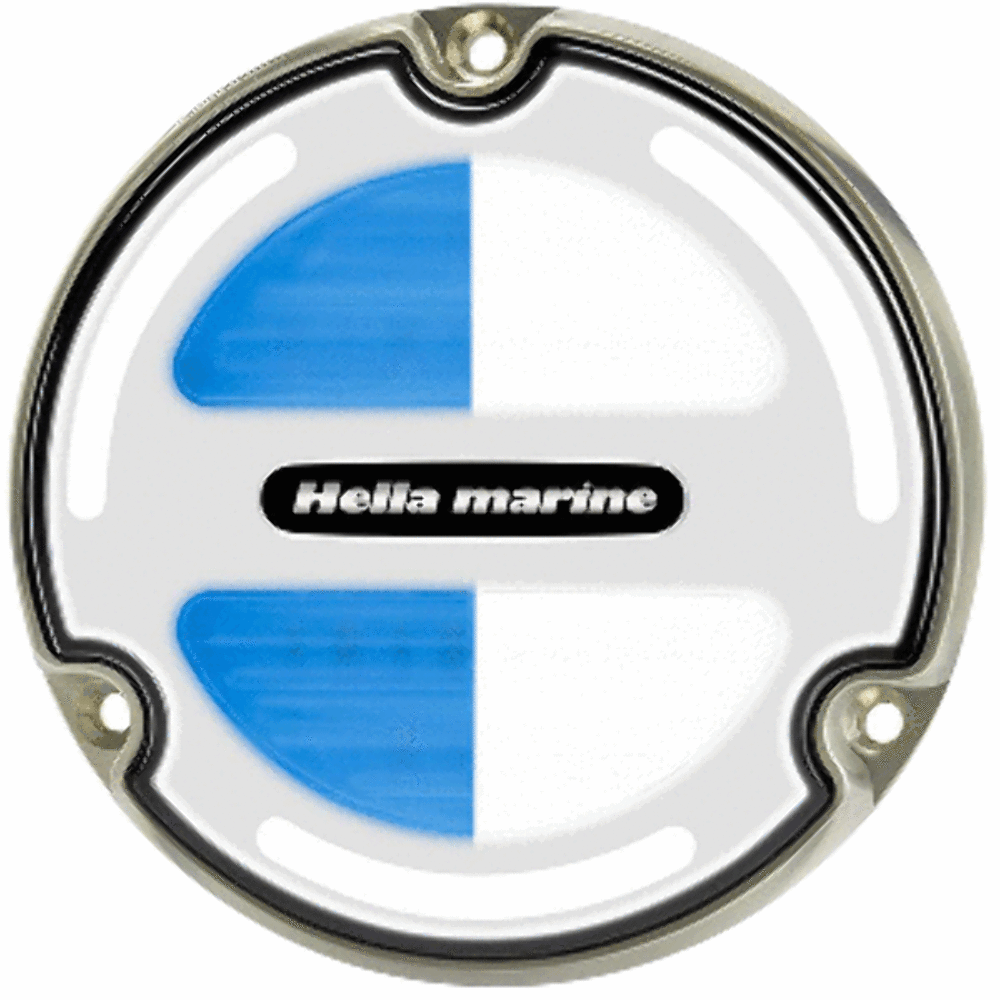

Apelo A3 White/Blue Underwater Light Bronze White LensSupercharged with 6000-lumen light output the Apelo A3 is the ultimate in the Hella Marine Apelo Underwater Light range.The A3 model has an improved formula with double the light output maximizing the vibrant blue and intense white. This version sports the edge lighting Apelo is known for.Optical intelligence is at the heart of Hella Marine lighting and Apelo is no exception. Intelligent optics spread light across the water without losing light to the depths projecting wide across the transom. With the addition of nickel-silver to the extremely corrosion-resistant housing the Apelo A3 is perfect for permanently submerged installations on larger boats and ships.Features:Suitable for fiberglass timber steel and composite hullsOnly mount on aluminum-hulled vessels with a suitable isolation spacerMade in New Zealand and backed by Hella Marine’s 5-year warranty (Apelo Underwater Lights are built to last)Specifications:Mounting: Transom/surfaceVoltage: Multivolt 12 / 24V DC NominalMax. Power Consumption: Blue/white 70W / 5.9A @ 12V 2.9A @ 24V & Edge Light Max. Light Output: 6000 lumens (white)Color Temperature: 5000K (white)Beam: 90Deg x 24DegProtection: Spike protected to +500 volts; reverse polarity protected to -700 volts; IP68 / IP69: Suitable for submersion in operation and high-pressure water jet cleaning; High-temperature thermal cutout for out-of-waterCable Length: 2.5m / 8.2ft tinned marine cableIdeal Depth: 100–500mmIdeal Width: 600–1200mmLens Material: Grilamid; (premium grade UV stable impact resistant nylon)Base Material: Marine grade bronzeCompliance: CE UKCA EN55015 / CISPR 15 IEC60533 IEC61547 ICES-005 RCM
Manufacturer Part Number: 16830001
Internal Code: 101870
Brochure:
Instalation Guide: https://productimageserver.com/literature/installations/101870IN.pdf
Video: https://www.youtube.com/embed/vcSOdWRlH_o?si=UmMpSII6VWtMUtv5|https://www.youtube.com/embed/6dZsAxdu9GI?si=kzbnGWNkfSk5b8Wv|https://www.youtube.com/embed/UsrCO4palCs?si=2P0D0fOo9PNde-vw|https://www.youtube.com/embed/zVLHBZBEYJQ?si=WBeHi7s-ysn5kV2O
