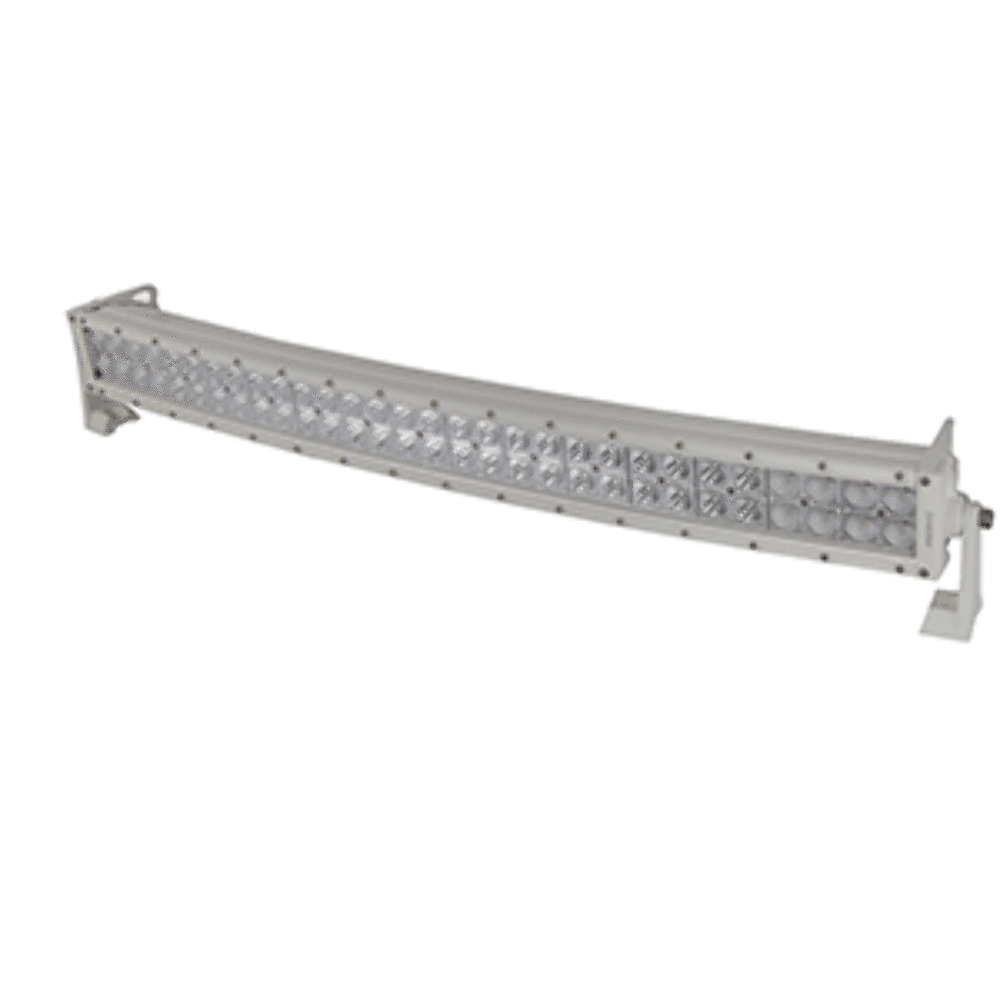

HEISE Dual Row Marine LED Curved Light Bar 30" Boat Marine HE-MDRC30

Product Description

BRAND: HEISE LED Lighting Systems

DESCRIPTION:
Dual Row Marine LED Curved Light Bar 30"SpecsInput Voltage: 10-30V DCWattage: 180 W(60-3W CREE LEDs)Raw Lumens: 14400LUX at 10M: 625Color Temperature: 6000KBeam Pattern: Combo/Flood 90 degrees/Spot 8 degreesConstructionHousing Material: Die-Cast Aluminum HousingHousing Color: White Coating with UV InhibitorsMembrane: Gore;Lens Material: PCMounting Bracket: Die-Cast AluminumHole Dimensions:Brackets Turned Inward – 31 inchesBrackets Turned Outward – 33.5 inchesMounting Bolt Drill – 25 inchesHeight of Light Bar Itself: 3 inchesDepth of Light Bar Itself: 3.5 inchesElectronics: Integrated-Epoxy EncapsulatedHardware: Stainless 316OperationOperating Temperature: – 40 degrees C to +60 degrees CCurrent Consumption: 9.5 Amps at 13.8 VoltsIP Rating: IP67Protections: Reverse PolarityWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: HE-MDRC30
Internal Code: 69772
