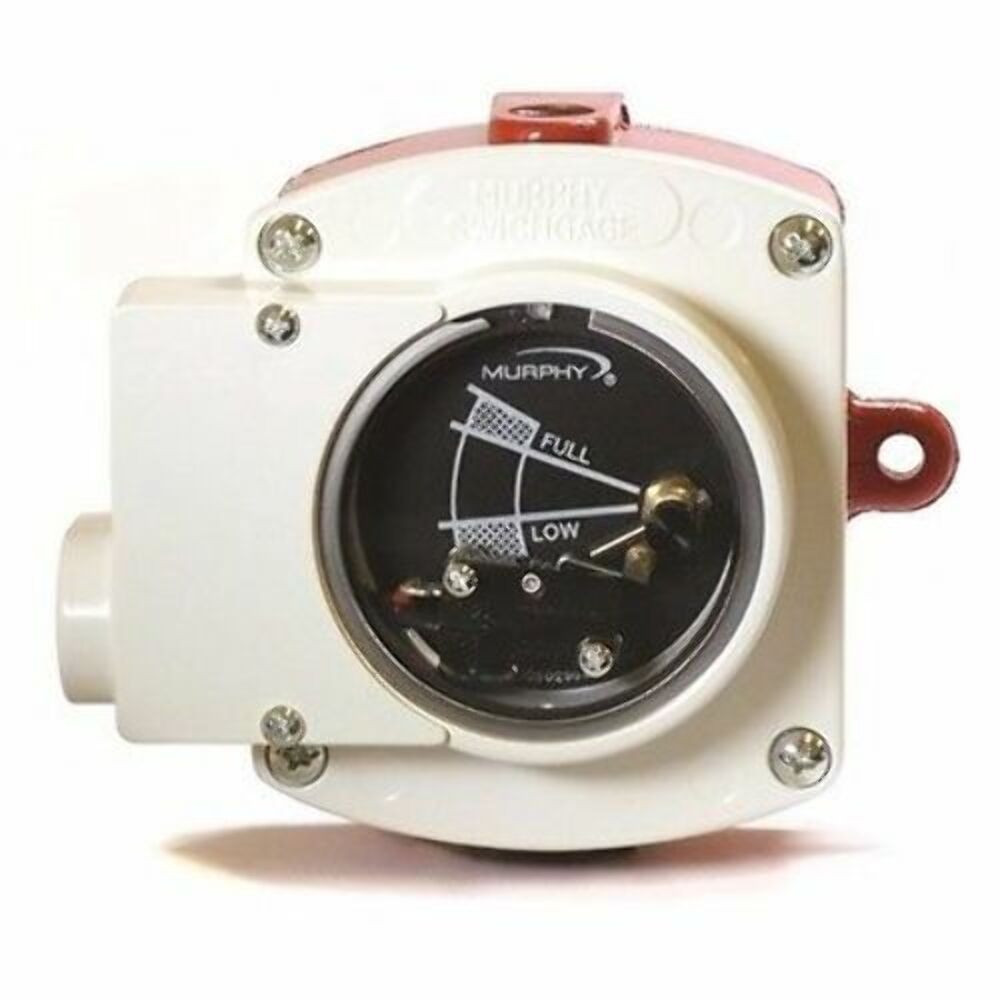

Frank W. Murphy EL150K1 Liquid Level Gauge Swichgage-Float 15700116 Alumi Coated
Product Description
BRAND: Frank W. Murphy
DESCRIPTION:
- Level Swichgage
- Die cast aluminum, poly-urethane coated.
- Float: Brass.
- Lens: Polycarbonate
FEATURES & ATRIBUTES:
- A combination liquid level gauge and low limit switch; each unit includes a chamber with pivotal float, an indicating dial with pointer and a low evel contact.
- When properly installed and maintained, the float operates the pointer which, in turn, both indicates level during normal operation, and closes a switching circuit if the level falls to the low-limit set point.
- Die cast aluminum, poly-urethane coated case with polycarbonate lens.
- Brass float.
- Built for low pressure systems with max of 25 psi
- Snap-switch: SPDT rated 10 amps 125V AC.
Manufacturer PN: 15700116
Internal Code: 772380
