Product Description
BRAND: Fireboy-Xintex
DESCRIPTION:

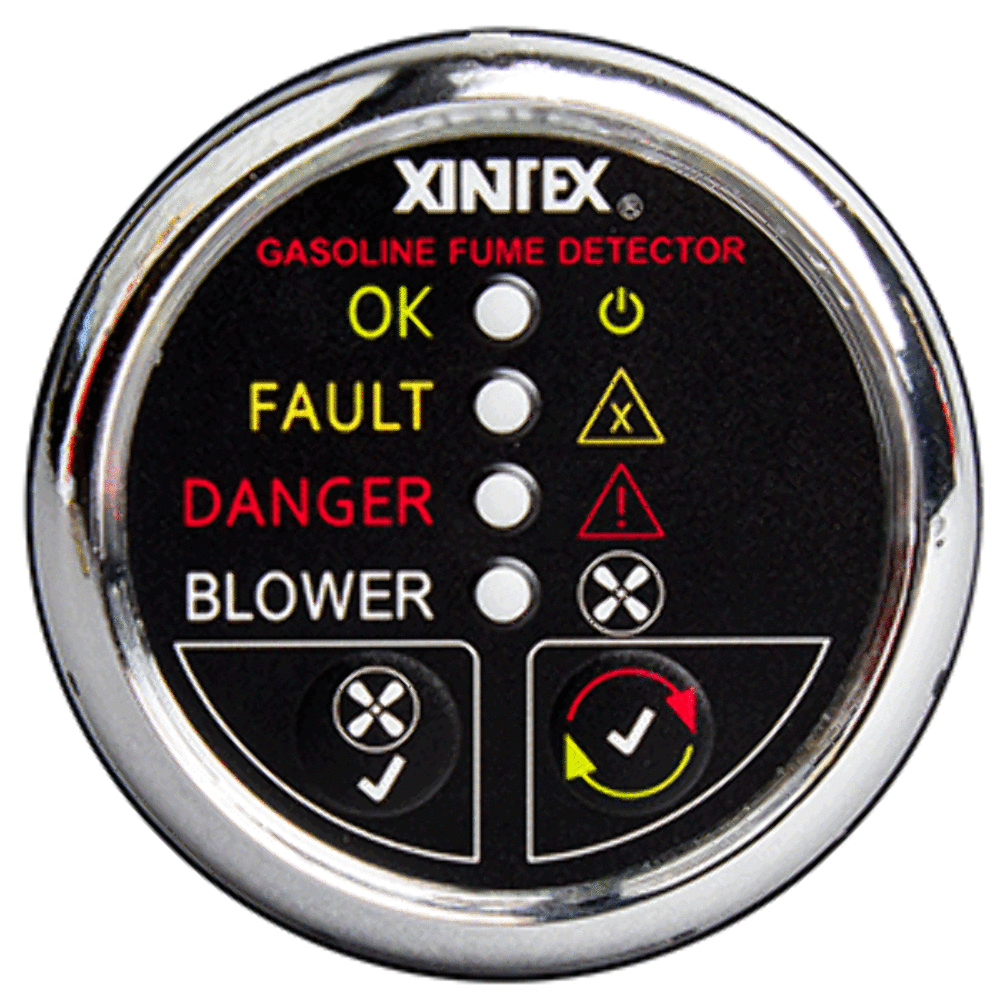

Gasoline Fume Detector w/Blower Control Chrome Bezel 12VThe Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment fuel tank storage area or in other areas where gasoline fumes might accumulate. Complete system includes Blower Control Relay easy installation and precise monitoring. Features:Simple InstallationAudible and visual alarm to indicate LEL (Lower Explosive Level) presence Monitors one (1) single area Automatically activates bilge blowerTechnical Specifications:Operating Temperature: -40Deg to 185DegF (-40Deg to 85C)Current Draw Nominal 55mA Current Draw Maximum 95mAOperating Voltage 9 to 30V DCAlarm Horn 68 dBDisplay Style Round with Chrome BezelDisplay Dimensions 2-3/16" (5.6 cm) roundCutout Dimension 2-1/16" (5.2 cm) round holeIn the Box:Fume DetectorFuel sensors x one (1)20' Extension Cable x one (1)Blower Relay x one (1)Instruction manual*Sold as an Individual
Manufacturer Part Number: G-1CB-R
Internal Code: 63868
Brochure: https://productimageserver.com/literature/brochure/63868BR.pdf
Instalation Guide:
Video:
