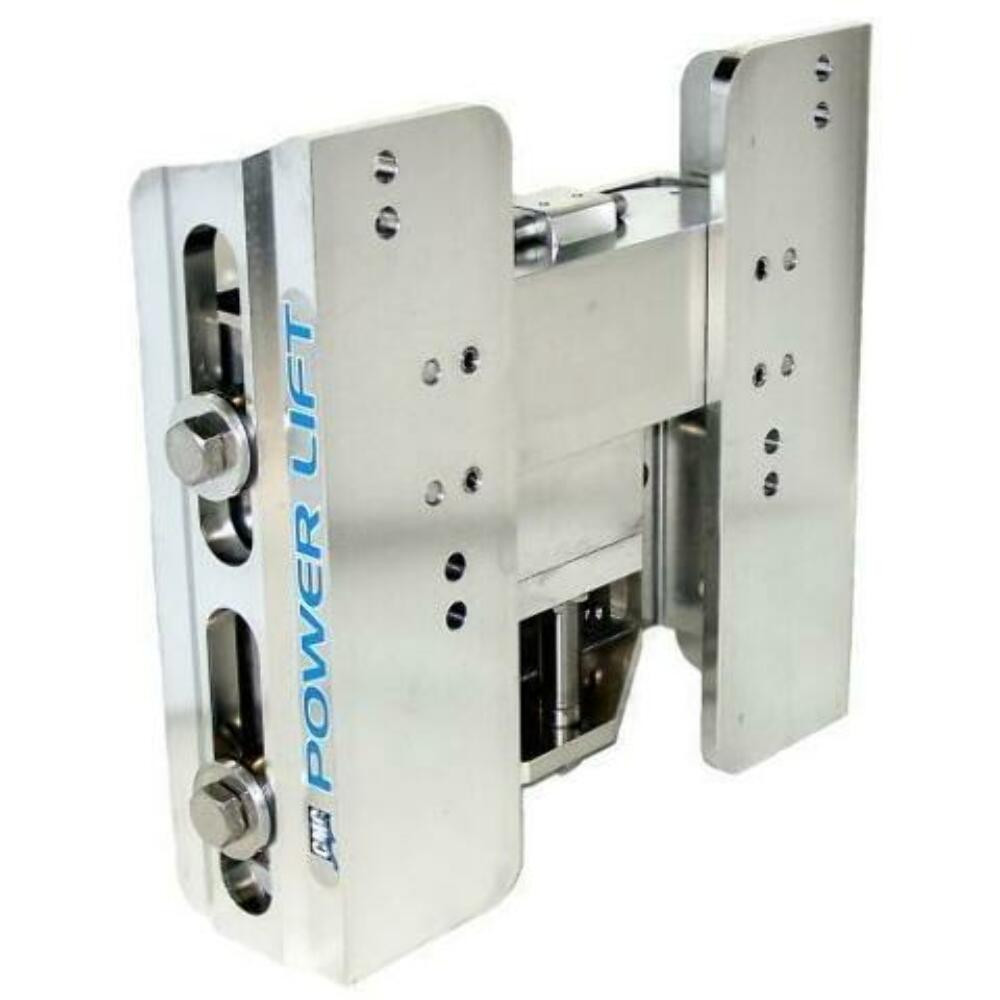

TH Marine CMC 65002 Hydraulic Jack Plate PL-65 w/oGauge 5.5"Setback up to 8"High
Product Description
DESCRIPTION: Model PL-65, 5-1/2” Without Gauge
FEATURES:
- Made of 6061 T6 alloy aluminum extrusions and fastened with stainless steel fasteners
- The dependable, self-contained and waterproof hydraulic actuator has a maximum lifting capacity of 7853 pounds of thrust.
- The motor bracket moves up and down on the transom bracket by use of rollers machined from aluminum-bronze alloy.
- Rated for V6 motors and smaller and gives you 5” of vertical travel with 1-1/2” of adjustment on the motor bracket and 1-1/2” of adjustment on the transom bracket.
- A total of 8 of possible adjustment.
IMPORTANT FITTING NOTES:
- The PL-65 is rated for V-6 motors and smaller and gives you 5" of vertical travel with 1-1/2" of adjustment on the motor bracket and 1-1/2" of adjustment on the transom bracket.
- A total of 8” of possible adjustment.
- It also can be purchased with stainless steel motor rails, Model PL-65SS (for V-8 motors 300 HP MAX).
FROM THE MANUFACTURER:
CMC Hydraulic Power-Lift Transom Jacks
The dependable, self-contained and water proof hydraulic actuator has a maximum lifting capacity of 7853 pounds of thrust. More than any other transom jack. You will have no problem lifting even a V-6 300 hp max. motor at full throttle.
The hydraulic actuator is mounted inside the structure of the Power-Lift, yet it is fully accessible without removing the engine. There are no hoses to contain, nor will you have to contend with mounting a pump and reservoir inside your boat, as is the need with other transom jacks. The hydraulic actuator is completely self-contained with its own fluid reservoir (eliminates the need for hydraulic tank and hoses inside the boat). It contains a permanent magnet motor for more power and constant torque. The cylinder within the actuator has twice the lifting capacity than other transom jacks on the market. It contains a no-leak seal and wiper that keeps dirt and water out of the working parts. The system is made of 100% non-ferrous material which makes it impervious to saltwater and freshwater.
The patented roller design means less friction, longer wear, less maintenance, and virtually no binding problems which are common with other transom jacks. The roller assembly contains a stainless steel 3/4" pin with aluminum-bronze alloy rollers. The roller is highly impact resistant, corrosive resistant, and has a high load carrying capacity.
The PL-65 is rated for V-6 motors and smaller and gives you 5" of vertical travel with 1-1/2" of adjustment on the motor bracket and 1-1/2" of adjustment on the transom bracket, a total of 8" of possible adjustment. It also can be purchased with stainless steel motor rails, Model PL-65SS (for V-8 motors 300 HP MAX).
MANUFACTURER SPECIFICATIONS:- Max Lifting Capacity: 7853 lb
- Roller Assembly Pin Dia: 3/4"
- Motor Rating: Up To V6
- Vertical Travel: 5"
- Motor Bracket and Transom Bracket Adjustment: 1 1/2"
Manufacturer PN: 65002
Internal Code: 303500
