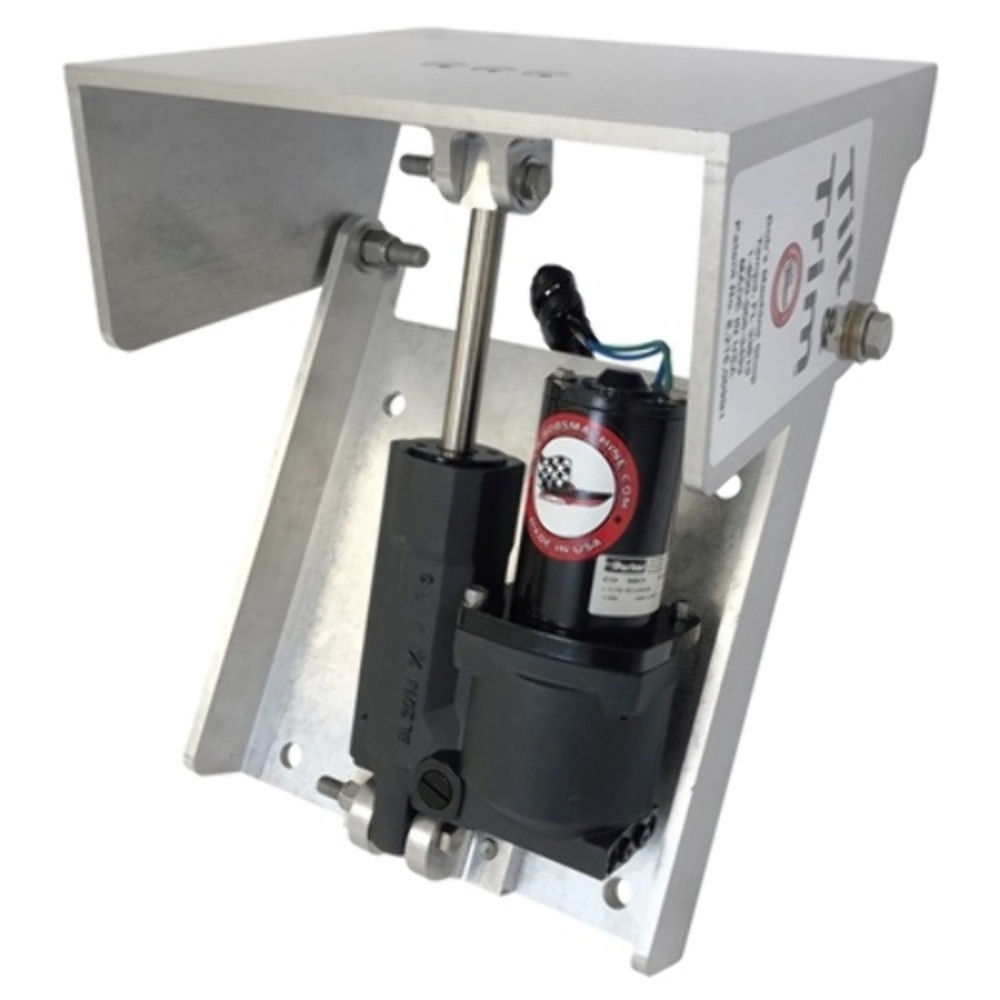

Bob’s Machine Power Tilt-Trim Jack Plate Set back 5.5" Outboard 40HP UNIVERSAL

BRAND: Bob’s Machine

DESCRIPTON:
- Shop Action Series Clamp-on Motor Tilt and Trim
- Max 30 HP Engies
- 5.5" setback
- For Clamp On engines
- Does not fit engine with BIA Bolt Pattern

APPLICATION NOTE:
- its really for any clamp on engines. It can hold 40HP.
- However, 99% of modern 35-40 hp motors have the wider width BIA bolt pattern and not the narrow clamp on
- Again, only for Clamp on.
- The BIA Bolt pattern is too wide for this tilt jack plate

FEATURES:
- Designed for motors up to 30-35-40HP, BMS’s new hydraulic Tilt & Trim can provide increased performance, better handling and less hassle raising and lowering the motor at the launch ramp.
- Allows skippers to trim the boat for a smoother, drier ride.
- When fully trimmed in, it provides a negative 3-degree tuck-under angle for faster starts and quicker on-plane times. After reaching plane, the boat can be optimized for best running angle by trimming the tilt up to its maximum of 75 degrees.
- A 5-1/2” setback is standard.
- The hydraulically operated Tilt & Trim will accommodate clamp-on motors, not standard BIA bolt pattern style.
- Over all mounting dimensions, which are: 10” wide by 11.5” length.
- It comes with wiring harness, control switch and carries a limited lifetime structural warranty.

Manufacturer PN: 100-701100
Internal Code: 304014
