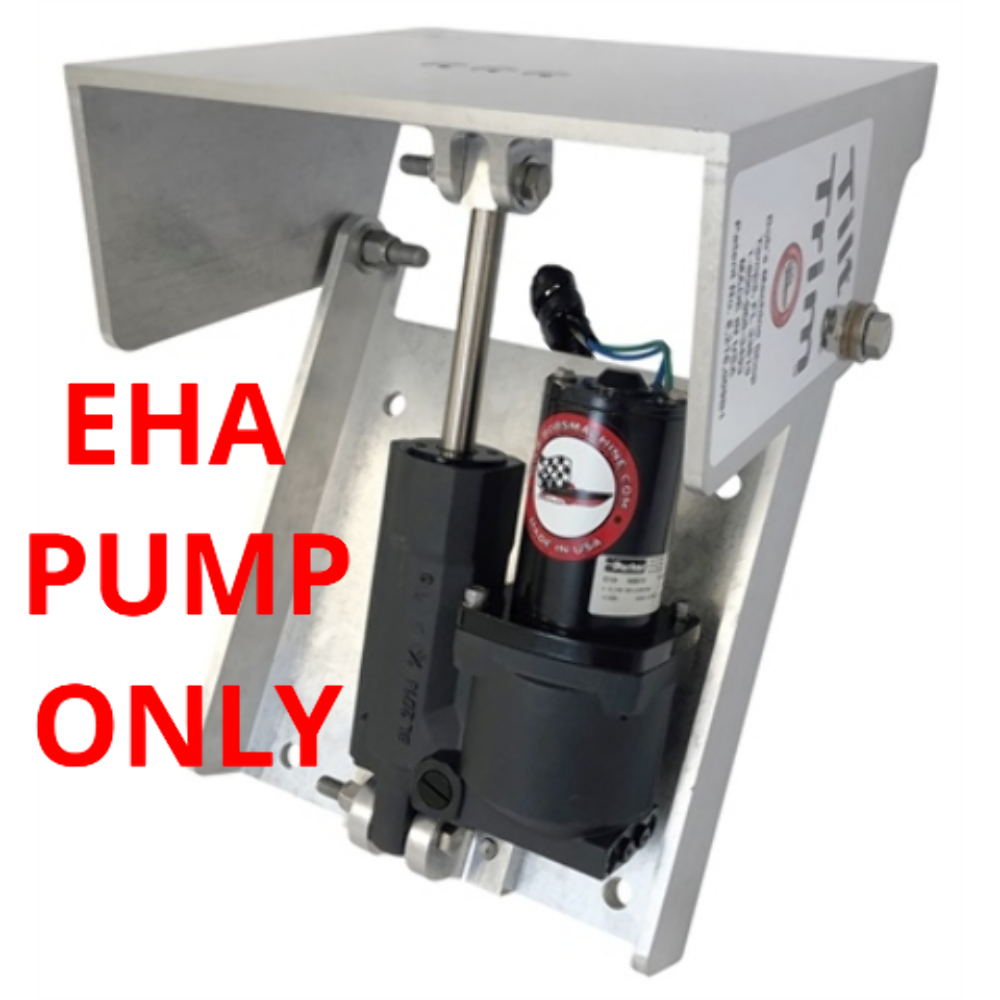

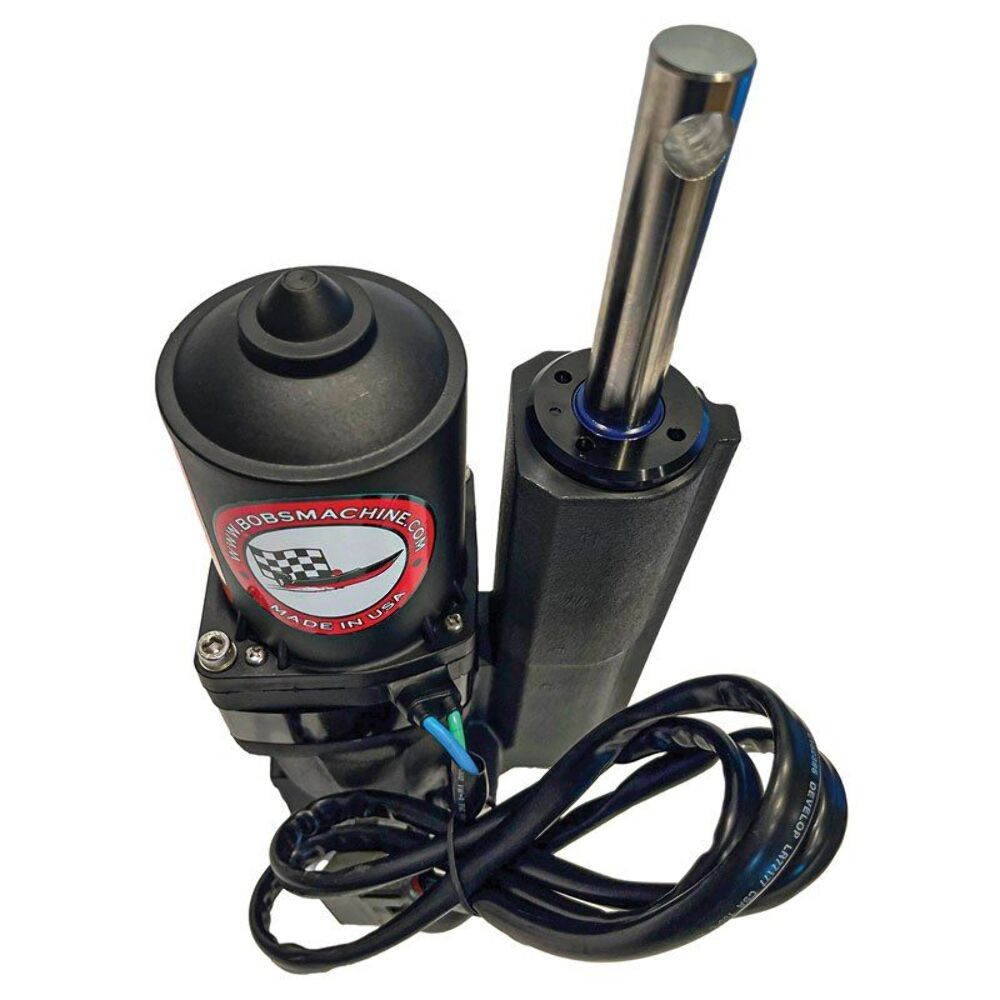

Bob’s Machine 120-120019 Hydraulic EHA Pump for Power Tilt-Trim Jack Plate

BRAND: Bob’s Machine

DESCRIPTON:
- Replacement EHA hydraylic Pump
- Pump Only
- For Action Series Clamp-on Motor Tilt and Trim

FEATURES OF THE TRIM AND TILT:
- Designed for motors up to 30 HP, BMS’s new hydraulic Tilt & Trim can provide increased performance, better handling and less hassle raising and lowering the motor at the launch ramp.
- Allows skippers to trim the boat for a smoother, drier ride.
- When fully trimmed in, it provides a negative 3-degree tuck-under angle for faster starts and quicker on-plane times. After reaching plane, the boat can be optimized for best running angle by trimming the tilt up to its maximum of 75 degrees.
- A 5-1/2” setback is standard.
- The hydraulically operated Tilt & Trim will accommodate clamp-on motors, not standard BIA bolt pattern style.
- Over all mounting dimensions, which are: 10” wide by 11.5” length.
- It comes with wiring harness, control switch and carries a limited lifetime structural warranty.

Manufacturer PN: 120-120019
Internal Code: 304140
