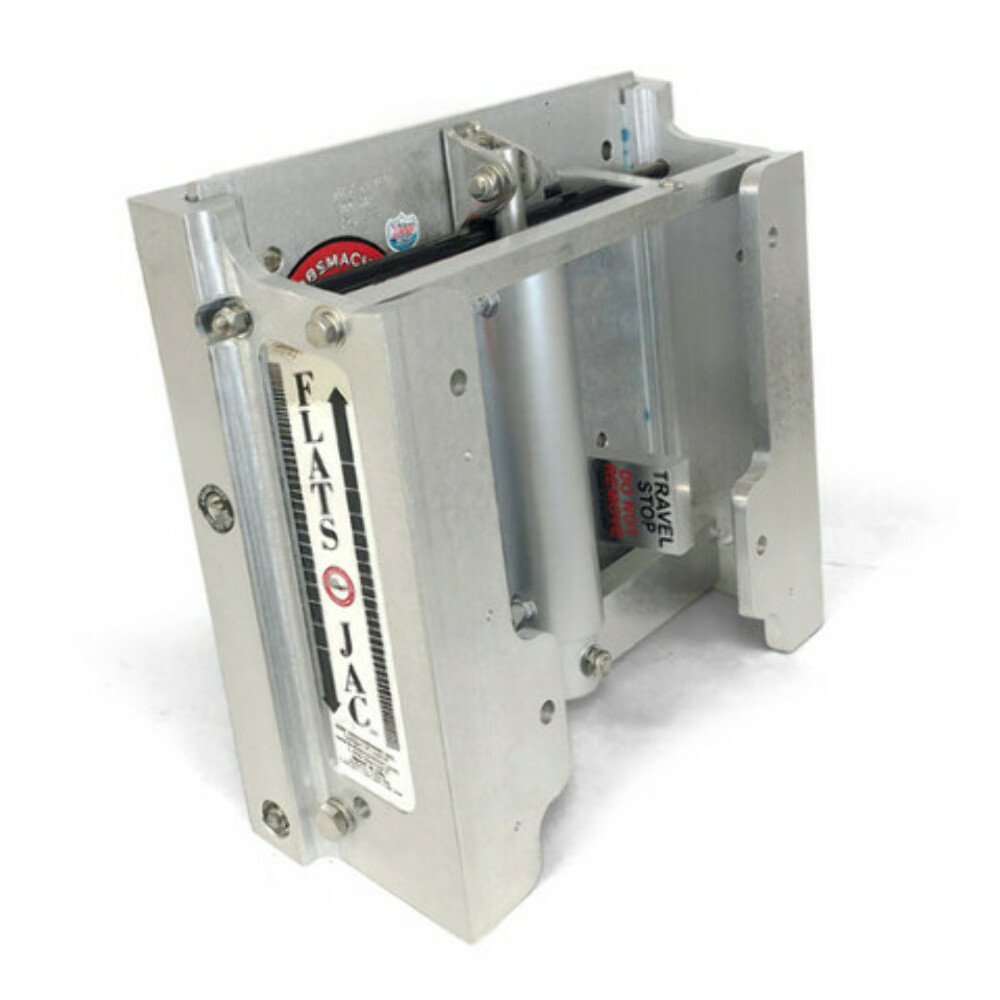

Bob's Machine 100-106000 Standard Hydraulic Jack Plate 6" Setback 300HP Outboard
$1,538.97
Product Description
BRAND: Bob'S Machine
DESCRIPTION: Standard Serie Hydraulic Jack Plates Setback6"
FEATURES & ATRIBUTES:
- Remote mount pump that connect to jack plate with hoses.
- Provides 7.5” of lift.
- Jac plates come with: Jac plate, pump, wiring harness, 7’ hoses, control switch and oil.
- All BIA mounting pattern engines up to 300 HP with max weight of 625 lbs.
- 5 year warranty on pump and lifetime on structure to original end purchaser.
FACTORY INFO:
- Jac plates come with: jac plate, pump, wiring harness, 7’ hoses, control switch, and oil
- Remote mount pump that connect to jack plate with hoses
- Hydraulic jac plate dimensions: Transom side mounting dimensions: width: 16 3/4” (42.5 cm) height 13 3/4” (34.9 cm)
- Motor side mounting width: 18 1/4” (46.35 cm)
- Mounting height 13 3/4” (34.9cm). Motor side OAW is 18 ¼’
- All jac plates provide 7.5” (19cm) of lift
- Limited lifetime warranty
- “Predrilled” for side mount Shallow Water Anchors
- Less weight on transom, pump stays dry in internal location
Manufacturer Part Number: 100-106000-NOPC-NOSP
Internal Code: 304001
