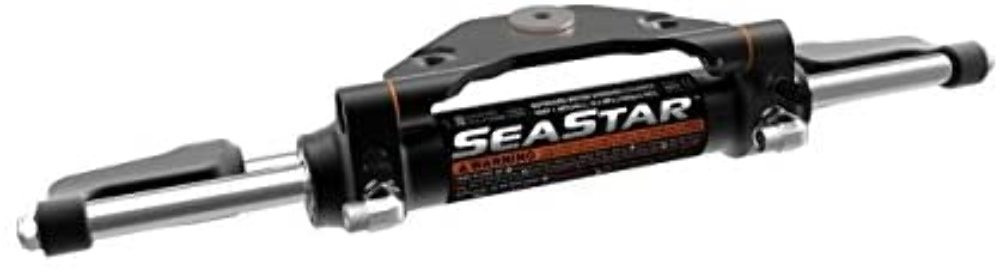

Boat Hydraulic Steering Cylinder Front Mount SeaStar HC5345-3 Teleflex f Yamaha
$890.99
Product Description
BRAND: SeaStar Solutions, Dometic Seastar, Teleflex
DESCRIPTION: SeaStar Front Mount Outboard Cylinders
FEATURES:
- Easy steering.
- Independent engine tilt for twin/triple engine installations.
- Suitable for use with all SeaStar Helms and SeaStar Power Assist.
- State of the art proprietary sealing system offers excellent resistance to repeated compression set and is designed to better withstand the harsh environment.
- Stainless steel adjustable O-ring (ORB) fitting for easier installation
- Requirements. Some installations require spacer kit (HO-5090).
APPLICATION:
APPLICATION NOTES:
1. Requires spacer kit HO5090.
2. May require extensive cowling modifications.
3. MUST use High Strength Tiller bolt, part # HA5822. Refer to the Notice on this page identifying the high strength bolt.
4. Optional cylinder part # HC5358. Slight interference may occur when using the HC5358, with the engine in the full tilt position.
5. Cylinder part # HC5358 may also be used in these single engine applications, please see note #4 for interference concerns.
Manufacturer PN: HC5345-3
Internal Code: 800639
QUESTIONS ABOUT SHIPPINGS, RETURNS, & PAYMENTS?
Please see details at the bottom of this page.
Need more info?
If necessary txt or whats ap +1954 and also 610 and 0765Ask a question.
We will answer questions in a matter of minutes...
DESCRIPTION: SeaStar Front Mount Outboard Cylinders
FEATURES:
- Easy steering.
- Independent engine tilt for twin/triple engine installations.
- Suitable for use with all SeaStar Helms and SeaStar Power Assist.
- State of the art proprietary sealing system offers excellent resistance to repeated compression set and is designed to better withstand the harsh environment.
- Stainless steel adjustable O-ring (ORB) fitting for easier installation
- Requirements. Some installations require spacer kit (HO-5090).
APPLICATION:
| ENGINE MANUF. | YEAR | MODEL | CYLINDER | NOTES |
| Force | 1985 TO DATE | 90-150HP | HC5345-3 | |
| Honda | 1996 TO DATE | 75-90HP | HC5345-3 | |
| 1998 TO 2009 | 115-130HP | HC5347-3 | ||
| 1998 TO DATE | 30-50HP | HC5345-3 | See Note 1 | |
| 2001 TO DATE | BF200-250 | HC5445-3 | ||
| 2003 TO DATE | BF135HP | HC5345-3 | ||
| 2010 TO DATE | 115HP | HC5345-3 | ||
| Johnson Evinrude |
1977 TO 1990 | 65-300HP | HC5348-3 | |
| 1988 TO 1997 | 250-300HP V8 | HC5342-3 | ||
| 1991 TO DATE | 40-300HP | HC5345-3 | Inc. ETech | |
| 1996 TO DATE | 75-250HP FICHT | HC5345-3 | ||
| 1998 TO DATE | 40-140HP 4-STROKE | HC5358-3 | See Note 1 | |
| 2000 TO DATE | 115HP FICHT | HC5358-3 | See Note 1 | |
| 2002 TO DATE | 200-225HP 4-STROKE | HC5345-3 | ||
| 2007 TO DATE | 3.3L/3.4L 200-250HP | HC5345-3 | Inc. HO Models | |
| Mercury | 1984 TO 1994 | 2.4/2.5HP EFI | HC5345-3 | See Note 2 |
| 1989 TO DATE | 75-300HP | HC5345-3 | ||
| 1998 TO DATE | 30-60HP | HC5345-3 | See Note 1 | |
| 2003 TO DATE | 115-300HP XS | HC6345-3 | See Note 3 | |
| 2004 TO DATE | 150-200HP VERADO | HC5345-3 | See Note 4, 5 | |
| Nissan | 1990 TO DATE | 90-140HP | HC5345-3 | |
| Suzuki | 1986 TO DATE | 100HP | HC5345-3 | |
| 1986 TO 2002 | 115-140HP | HC5345-3 | NOT 1996 | |
| 1986 TO DATE | 150-300HP 2 & 4 STROKE | HC5345-3 | ||
| 1996 ONLY | 115-140HP | HC5348-3 | ||
| 1998 TO DATE | 40-140HP 4-STROKE | HC5358-3 | See Note 1 | |
| Yamaha | 1990-2003 | 40-90 HP 2-STROKE | HC5345-3 | See Note 1 |
| 1986-DATE | 100-300 HP 2-STROKE | HC5345-3 | ||
| 1997-DATE | 80-250 HP 4-Stroke | HC5345-3 | ||
| 2000-DATE | 150-300 HPDI | HC5345-3 | ||
| 2003-DATE | 25-70 HP 4-Stroke | HC5348-3 | See Note 1 | |
| 2007-DATE | 200-300 HP 4.2L V6 4-Stroke | HC5345-3 | ||
| 2007-DATE | F300-F350 HP 5.3V8 | HC5345-3 | See Note 4 | |
| 2011-2013 | F115A | HC5358-3 | ||
| 2014-DATE | F115B | HC5345-3 |
APPLICATION NOTES:
1. Requires spacer kit HO5090.
2. May require extensive cowling modifications.
3. MUST use High Strength Tiller bolt, part # HA5822. Refer to the Notice on this page identifying the high strength bolt.
4. Optional cylinder part # HC5358. Slight interference may occur when using the HC5358, with the engine in the full tilt position.
5. Cylinder part # HC5358 may also be used in these single engine applications, please see note #4 for interference concerns.
Manufacturer PN: HC5345-3
Internal Code: 800639
