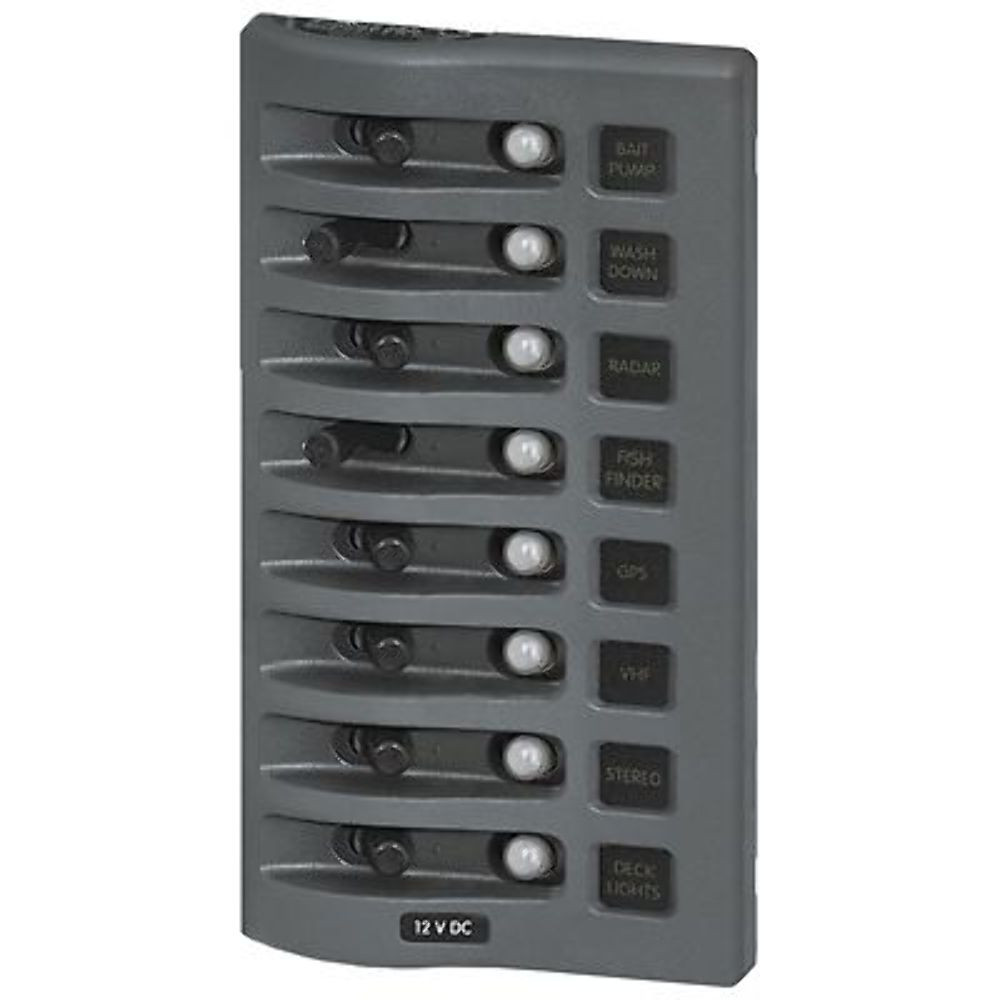

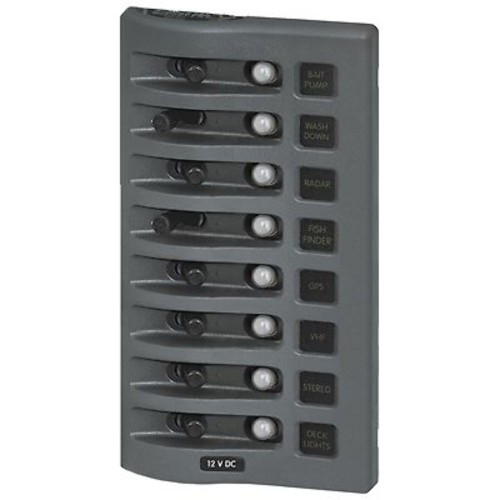

Blue Sea 4378-BSS WeatherDeck Waterproof Circuit Breaker Panel 8Pos 45Amp 12V
$189.33
Product Description
BRAND: Blue Sea Systems
DESCRIPTION:
- Blue Sea WeatherDeck™ Waterproof Circuit Breaker Panels
- Size: 7.7” H x 4.25” W x 3.5” D
FEATURES:
- Rated IP67 - temporary immersion for 30 minutes.
- Designed for flybridge and open cockpit applications.
- Independent label backlighting allows switching and dimming.
- Compatible with all Blue Sea Systems Digital Dimmers.
- Each panel can be mounted in four different orientations.
- Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
- Panel cumulative rating: 45 amp.
- Gray.
- 12 volt.
Manufacturer PN: 4378-BSS
Internal Code: 379610
Technical Specifications from Manufacturer:
| Weatherproof | Waterproof |
| Positions | 8 |
| Nominal Voltage | 12V DC 24V DC |
| Circuit Protection | Circuit Breaker |
| Maximum Amperage | 15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit) |
| Panel Cumulative Rating | 45A |
| Backlit Label | Green LED |
| Backlighting Amperage | 10mA /Illuminated Circuit |
| Backlighting Voltage | 12 or 24V DC |
| Material | Reinforced Polycarbonate |
| Height | 7.70in (195.58 mm) |
| Width | 4.25in (107.95 mm) |
| Depth | 3.50in (88.9 mm) |
| Weight | 1.70lb (0.77 kg) |
