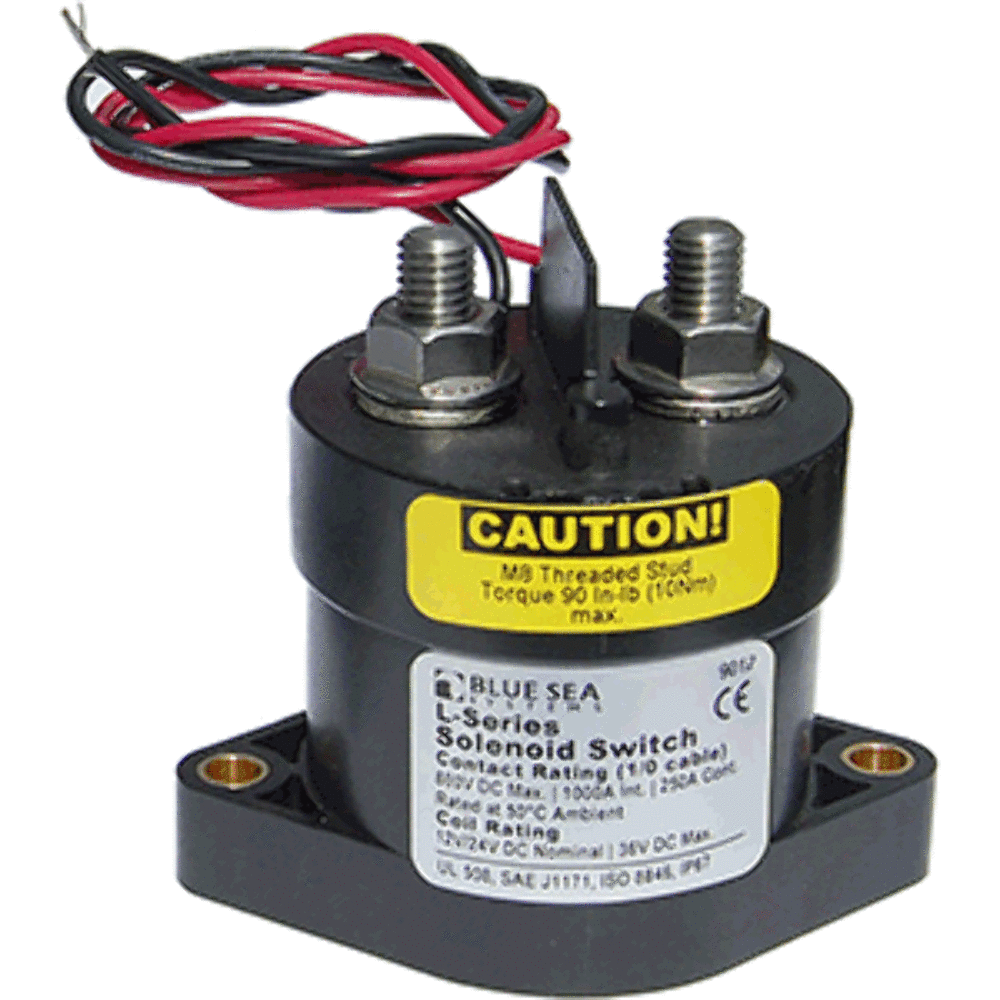

- Blue Sea 9012 L Solenoid Switch 12-24VDC 250A Boat Sailboat Electrical
Categories
- HOME
- ATV - UTV Parts (4 Wheeler)
- BBQ-Cooler-Kitchen-Appliances
- Boat Accessories: Deck-Cabin
- Boat Inboard I/O Engine Parts
- Boat Outboard Engine Parts
- Boat Steering & Control
- Motorcycles Dirt/Super Bikes
- Electrical
- Engine Maintenance Parts
- Fishing
- Fuel: Tank-Filter-Sender-Parts
- General Boating
- GPS Fishfinder Navigation
- Hardware
- Jetboat & PWC Watercraft Parts
- Maintenance & Care
- Paint & Accessories & Tools
- Plumbing: Pumps-Parts-Fittings
- RV Camper Outdoor Hitch Tow
- Propellers-Skeg Guard-Anodes
- Sailing-Sailboat
- Snowmobile Parts
- Sports & Recreation & Clothing
- Stereo Receiver Speaker Amps
- Trailer Parts Trailering
- Trolling Motors & Accessories
- Used Parts
- Used & Remanufactured Engines
- Ventilation: Blower-Hatch-AC
- Others
)
Product Description
BRAND: Blue Sea Systems
DESCRIPTION:
L Solenoid Switch 12-24VDC 250AFeatures:Hermetically sealed contacts / vaporproofIgnition protected safe for installation aboard gasoline powered boatsActivated by an ON-OFF switch mounted anywhereIntegrated coil control minimizes heating and amperage draw450 Amp ClassDesigned for 12 or 24 Volt systemsIgnition protected -- safe for installation aboard gasoline-powered boatsActivated by a low amperage ON-OFF switch mounted anywhereSpecifications:Control Circuit Connection: 20 AWG Tinned WireNominal Voltage: 12V DC / 24V DCCoil Function: Normally OpenMounting: #10Operating Amperage Current: 3.6A when changing stateAmperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 VTerminal Stud Torque: 90 in-lb (10.17 Nm)Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire SizeIntermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire SizeCranking Rating 30 sec: 1,000A / 1000A DCContact Form: SPST-NOInput Voltage: 9-36V DCInrush Rating: 0.25 sec (10 repeats): 2000ASwitching Cycles: 1,000,000Terminal Stud: Serrated Flange NutTerminal Stud Length: 0.66" (16.76mm)Terminal Stud Size: 5/16" (M8)Weight: 1.00lb (0.45 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 9012
Internal Code: 20952
Brochure:
Instalation Guide:
Video:
Need more info?
Ask a question.
We answer questions quickly....
DESCRIPTION:
L Solenoid Switch 12-24VDC 250AFeatures:Hermetically sealed contacts / vaporproofIgnition protected safe for installation aboard gasoline powered boatsActivated by an ON-OFF switch mounted anywhereIntegrated coil control minimizes heating and amperage draw450 Amp ClassDesigned for 12 or 24 Volt systemsIgnition protected -- safe for installation aboard gasoline-powered boatsActivated by a low amperage ON-OFF switch mounted anywhereSpecifications:Control Circuit Connection: 20 AWG Tinned WireNominal Voltage: 12V DC / 24V DCCoil Function: Normally OpenMounting: #10Operating Amperage Current: 3.6A when changing stateAmperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 VTerminal Stud Torque: 90 in-lb (10.17 Nm)Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire SizeIntermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire SizeCranking Rating 30 sec: 1,000A / 1000A DCContact Form: SPST-NOInput Voltage: 9-36V DCInrush Rating: 0.25 sec (10 repeats): 2000ASwitching Cycles: 1,000,000Terminal Stud: Serrated Flange NutTerminal Stud Length: 0.66" (16.76mm)Terminal Stud Size: 5/16" (M8)Weight: 1.00lb (0.45 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 9012
Internal Code: 20952
