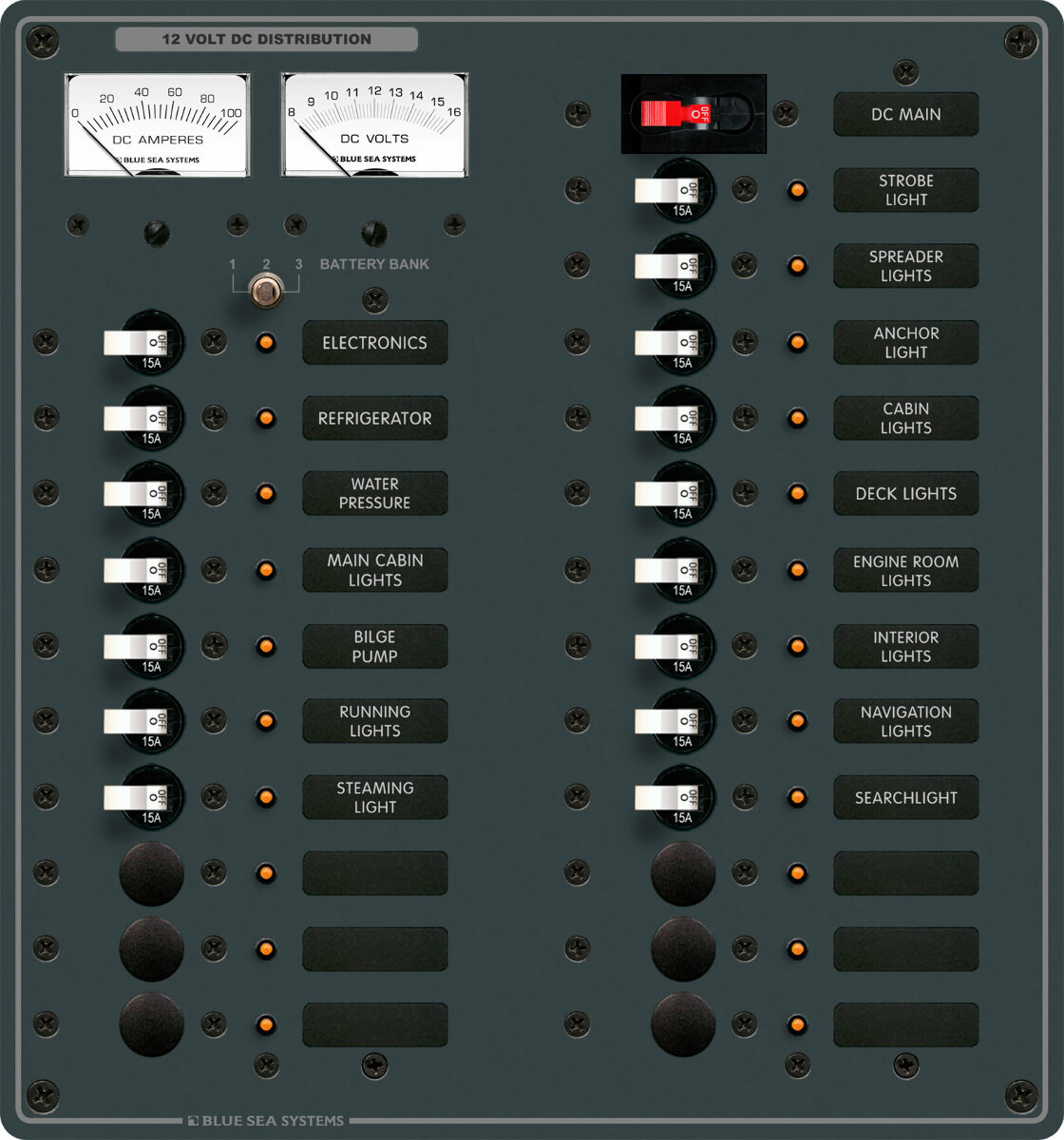

Blue Sea 8380 Electrical Panel DC Main 22 Position 100A Voltmeter Ammeter boat

Main + 22 Positions
(16) 15A Single Pole Circuit Breakers
(1) 100A C-Series Main Circuit Breaker
(1) 8028 DC Micro Voltmeter
(1) 8250 DC Analog Micro Ammeter
White Switches

SPECIFICATIONS:

Specifications
Positions	22
Nominal Voltage	12V DC
Maximum Amperage	100A
Height	11.25in (285.75 mm)
Width	10.50in (266.7 mm)
Depth	3.00in (76.2 mm)
Weight	8.25lb (3.74 kg)

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions
• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8" aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included
• Includes set of 30 common Large Format Panel Labels
• Over 500 individual labels available
