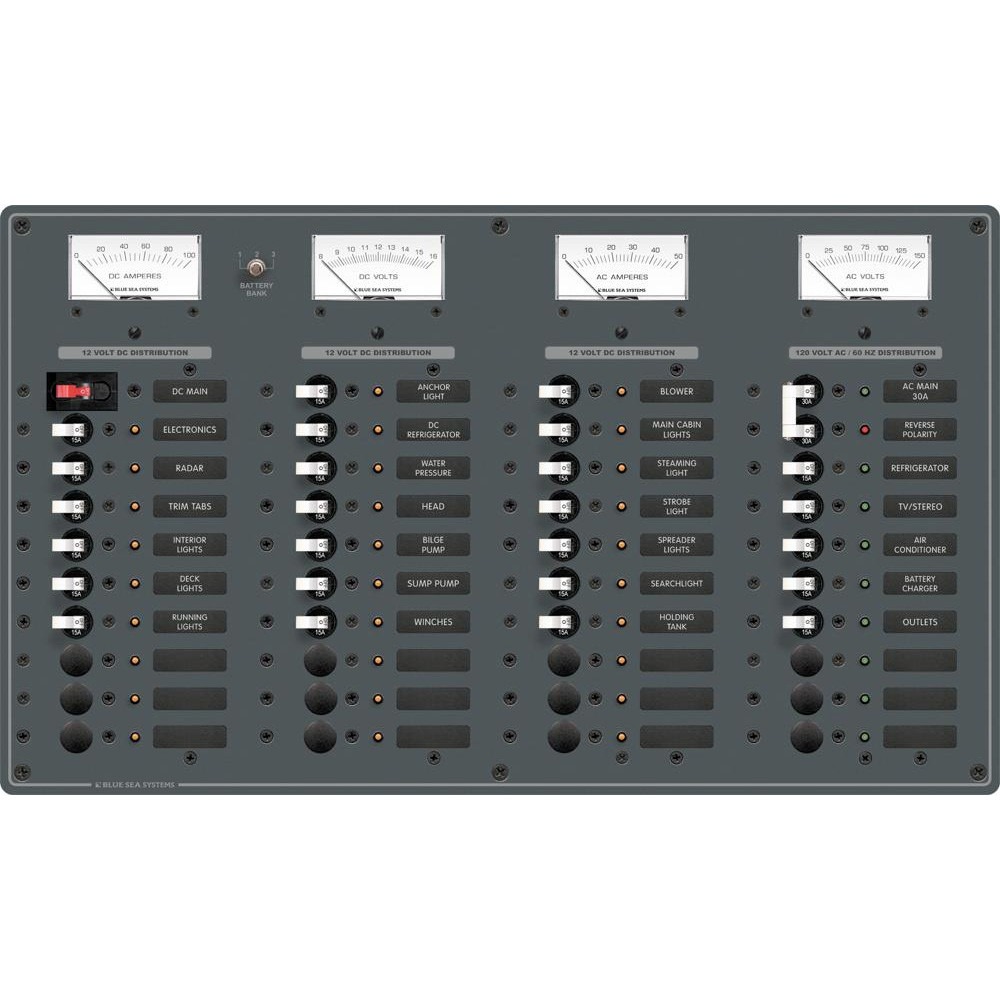

Blue Sea 8095 AC Main +8 Position DC +29 Position Toggle Circuit Breaker Panel

• Includes set of 30 common AC and 30 common DC labels

• All AC and DC buses installed, fully pre-wired

• Label backlighting pre-installed

• All LEDs installed

• Maximum panel Amperage
  • 100 Amperes DC

  • 50 Amperes AC

• Red reverse polarity indicating LED

• 9353, 0-150 Volt AC Voltmeter

• 9630, 0-50 Amp AC Ammeter

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits

• 8003, 8-16 Volt DC Voltmeter

• 8017, 0-100 Amp DC Ammeter

• Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

• AC Positions: Source Selectors +8

• DC Positions: Main +29

• 120 Volts AC

• 12 Volts DC

• (1) 30A (5) 15A AC Circuit Breakers

• (1) 100A (20) 15A DC Circuit Breakers
