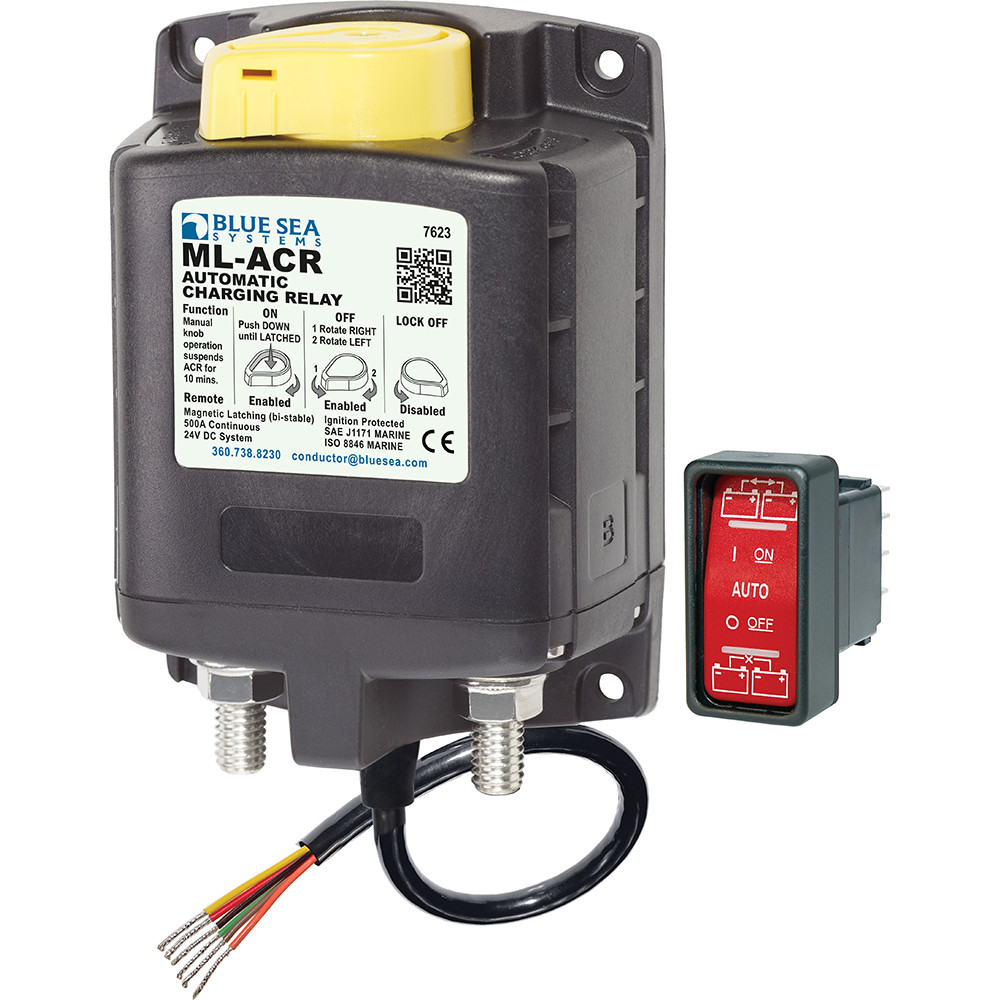

- Blue Sea 7623 ML-Series Heavy Duty Automatic Charging Relay 24V 7623 Boat Marine
Categories
- HOME
- ATV - UTV Parts (4 Wheeler)
- BBQ-Cooler-Kitchen-Appliances
- Boat Accessories: Deck-Cabin
- Boat Inboard I/O Engine Parts
- Boat Outboard Engine Parts
- Boat Steering & Control
- Motorcycles Dirt/Super Bikes
- Electrical
- Engine Maintenance Parts
- Fishing
- Fuel: Tank-Filter-Sender-Parts
- General Boating
- GPS Fishfinder Navigation
- Hardware
- Jetboat & PWC Watercraft Parts
- Maintenance & Care
- Paint & Accessories & Tools
- Plumbing: Pumps-Parts-Fittings
- RV Camper Outdoor Hitch Tow
- Propellers-Skeg Guard-Anodes
- Sailing-Sailboat
- Snowmobile Parts
- Sports & Recreation & Clothing
- Stereo Receiver Speaker Amps
- Trailer Parts Trailering
- Trolling Motors & Accessories
- Used Parts
- Used & Remanufactured Engines
- Ventilation: Blower-Hatch-AC
- Others
Product Description
DESCRIPTION:
7623
Manual Control: Yes
Coil Voltage: 24v
Features:
BRAND:
Blue Sea Systems
Internal Code: 34968
Manufacturer Part Number: 7623
Need more info?
Ask a question.
We answer questions quickly....
7623
Manual Control: Yes
Coil Voltage: 24v
Features:
- Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
- Includes ML-Series Remote Control Contura Switch PN 2146
- 500 Ampere continuous rating
- Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
- Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
- Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
- Senses charging on two battery banks
- Supports high-output alternators up to 500 Amps
- LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit protection
- Silver alloy contacts provide high reliability for switching live loads
