Product Description
BRAND: Blue Sea Systems
DESCRIPTION:

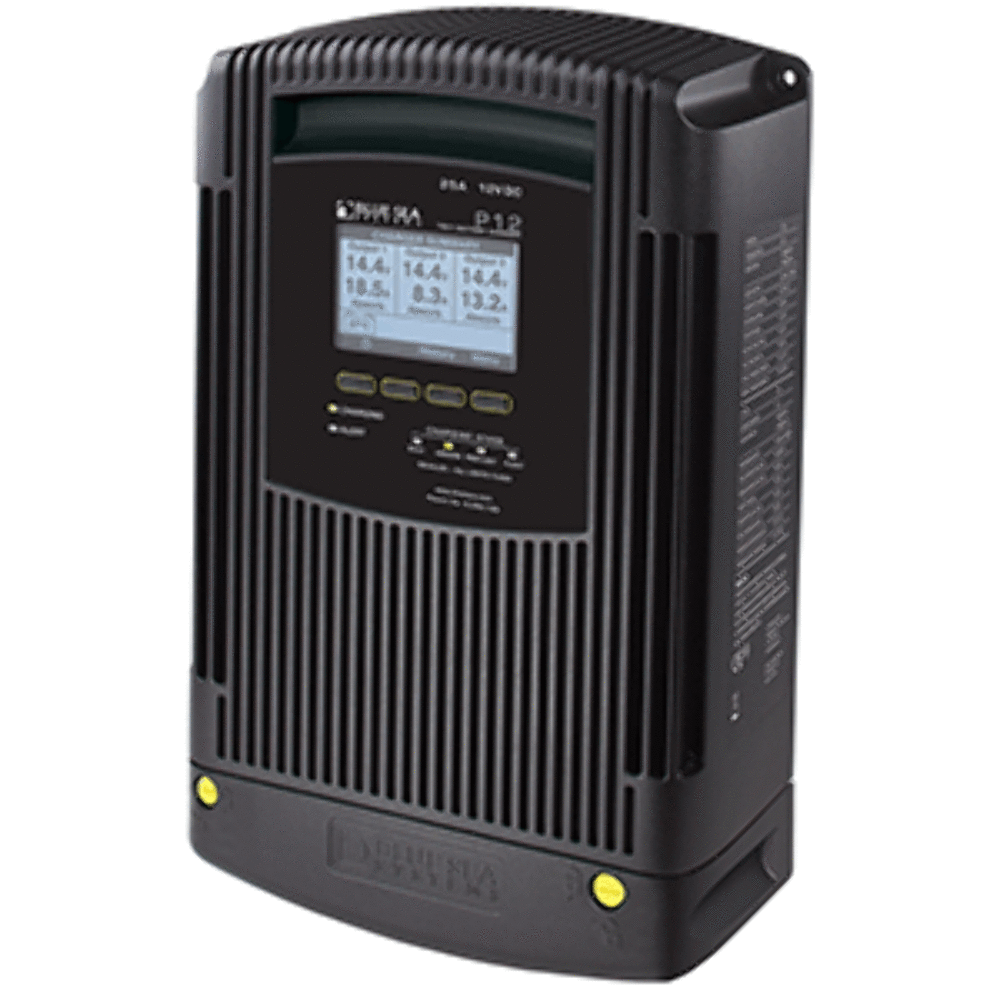

P12 Battery Charger 12V DC 25AFour stage three output dry mount design for use in harsh environments.Features:Rugged finned aluminum casePreFloat stage prevents over chargingPower factor corrected for efficient use of ACIntuitive diagnostic screensUser defined charge profiles and customizable settingsProvides charging for up to three battery banksLarge bright displayMulti-language: English French German Italian SpanishCharge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each batteryBattery Temperature Compensation adjusts charge voltage based on battery temperatureAC over and under voltage shut down and automatic restartOver and under battery temperature protection charger will not operate if battery temperature rises above or falls below a set valueDC over voltage and reverse polarity protectionSurge and short circuit protectionSpecifications:Total Output Current: 25AInput AC Current: 4.5A @ 100V AC / 2.25A @ 200V ACMaximum Output Voltage: 16V DCNominal Voltage: 12V DCIgnition Protected: YesNumber of Outputs: 1 negative / 3 positiveUniversal AC Input Voltage: 90-265V ACAC Input Frequency: 45-65HzOutput Voltage Accuracy: 0.05VTypical Float Voltage: 13.5V DCMinimum Operating Temperature: -20Deg CMaximum Operating Temperature: 70Deg CMinimum Storage Temperature: -30Deg CMaximum Storage Temperature: 80Deg CBattery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)Recommended for Battery Bank Sizes: 330Ah Maximum / 60Ah MinimumWarranty: 5 YearHeight: 13.03" (330.96 mm)Width: 8.46" (214.88 mm)Depth: 3.66" (92.96 mm)Weight: 13.00lb (5.9 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 7531
Internal Code: 66886
Brochure: https://productimageserver.com/literature/brochure/66886BR.pdf
Instalation Guide:
Video: https://www.youtube.com/embed/TLnavqKavPc
