Product Description
BRAND: Blue Sea Systems
DESCRIPTION:

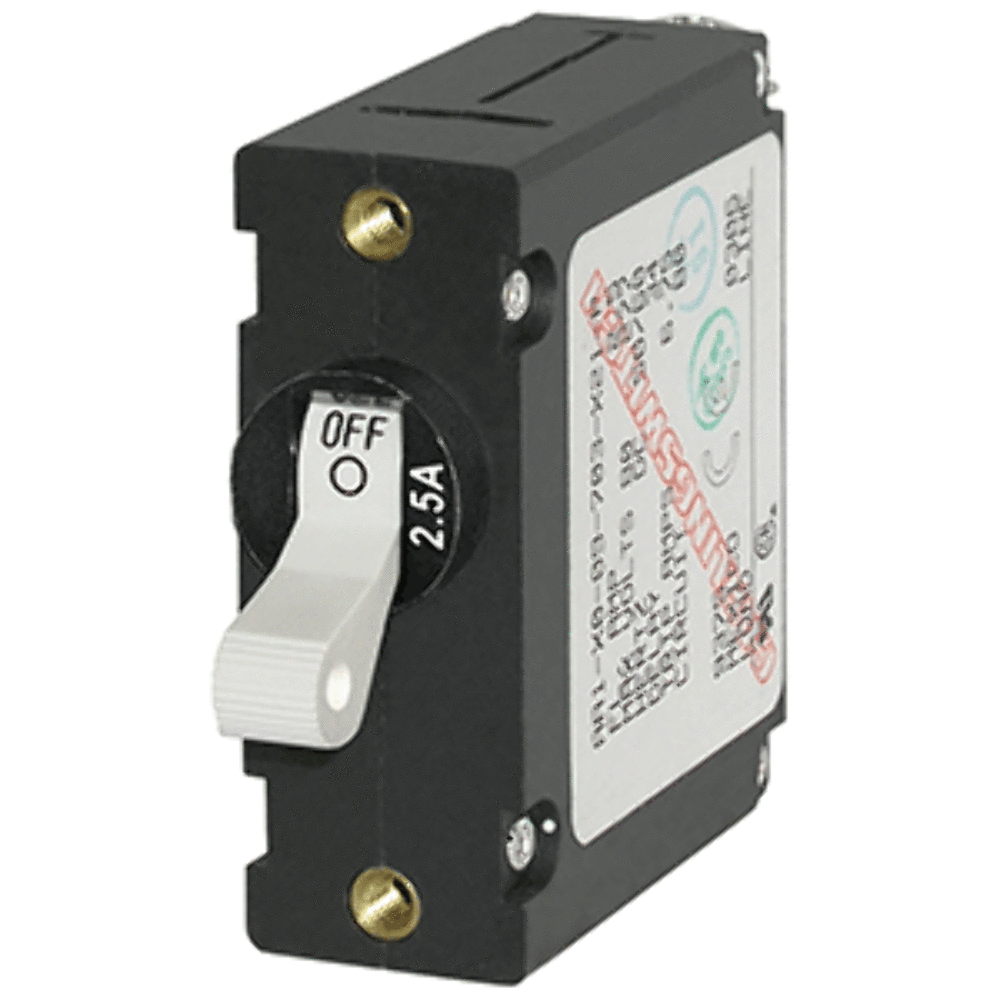

A-Series White Toggle Circuit Breaker Single Pole 2.5AMeets American Boat and Yacht Council (ABYC) standardsThe industry standard circuit breaker for Blue Sea Systems" electrical panelsCombines swtiching and circuit protection into a single device"Trip Free" design cannot be held "ON" during fault current conditionSpecifications:Amperage: 2.5A AC / 2.5A DCColor: WhiteActuator Style: TogglePoles: 1Maximum Voltage: 250V AC / 65V DCCircuit Breaker Type: Magnetic Hydraulic trip freeInterrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DCMinimum Operating Temperature: -40Deg CMaximum Operating Temperature: 85Deg CMounting Screw: #6-32 St SteelMounting Screw Torque: 6 in-lb (0.68 Nm)Screw Terminal Torque: 14 in-lb (1.58 Nm)Switching Cycles: 10000Terminal Screw: #10-32 St SteelWeight: 0.17lb (0.08 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 7197
Internal Code: 64359
Brochure:
Instalation Guide:
Video:
Need more info?
Ask a question.
We answer questions quickly....
DESCRIPTION:
A-Series White Toggle Circuit Breaker Single Pole 2.5AMeets American Boat and Yacht Council (ABYC) standardsThe industry standard circuit breaker for Blue Sea Systems" electrical panelsCombines swtiching and circuit protection into a single device"Trip Free" design cannot be held "ON" during fault current conditionSpecifications:Amperage: 2.5A AC / 2.5A DCColor: WhiteActuator Style: TogglePoles: 1Maximum Voltage: 250V AC / 65V DCCircuit Breaker Type: Magnetic Hydraulic trip freeInterrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DCMinimum Operating Temperature: -40Deg CMaximum Operating Temperature: 85Deg CMounting Screw: #6-32 St SteelMounting Screw Torque: 6 in-lb (0.68 Nm)Screw Terminal Torque: 14 in-lb (1.58 Nm)Switching Cycles: 10000Terminal Screw: #10-32 St SteelWeight: 0.17lb (0.08 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 7197
Internal Code: 64359
