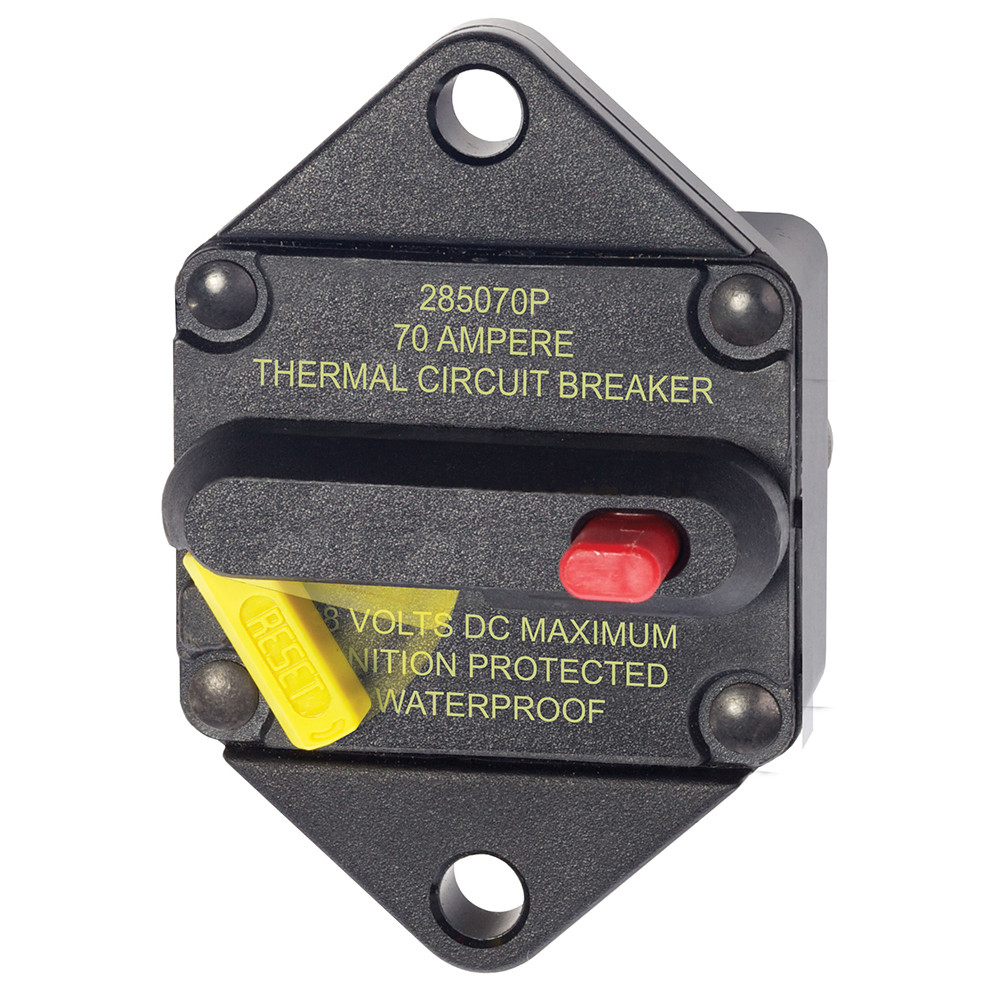

Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series 7085 Boat Marine

DESCRIPTION:
285-Series Thermal Circuit Breaker Panel Mount 70A
Part#7085

• Drop in replacement for 185-Series Circuit Breakers

• Visible reset lever shows open condition

• Ignition protected Safe for installation aboard gasoline powered boats

• Meets SAE J1171 external ignition protection requirements

• Weather Resistant

• Combines switching and circuit breaker function into one unit

• "Trip Free" cannot be held closed after trip

* Do not use for direct control of high inrush loads such as motor starting.

Specifications

Interrupt Rating 3,000A @ 48V DC*
Maximum Voltage Rating 48 Volts DC
Operating Temperature Range -40DegC to 85DegC
Circuit Breaker Type Thermally Responsive Bi-metal blade
Circuit Breaker Class Type III Switchable / Manual Reset Trip Free
Terminal Stud Size M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque 50 in-lb
Mounting Holes Accept 1/4" (M6) screw
Weight Lb (Kg) 0.33 lb (0.15 kg)

* AIC ratings achieved using SAE J1625

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

BRAND:
Blue Sea Systems

Internal Code: 40613
Manufacturer Part Number: 7085
