Product Description
BRAND: Blue Sea Systems
DESCRIPTION:

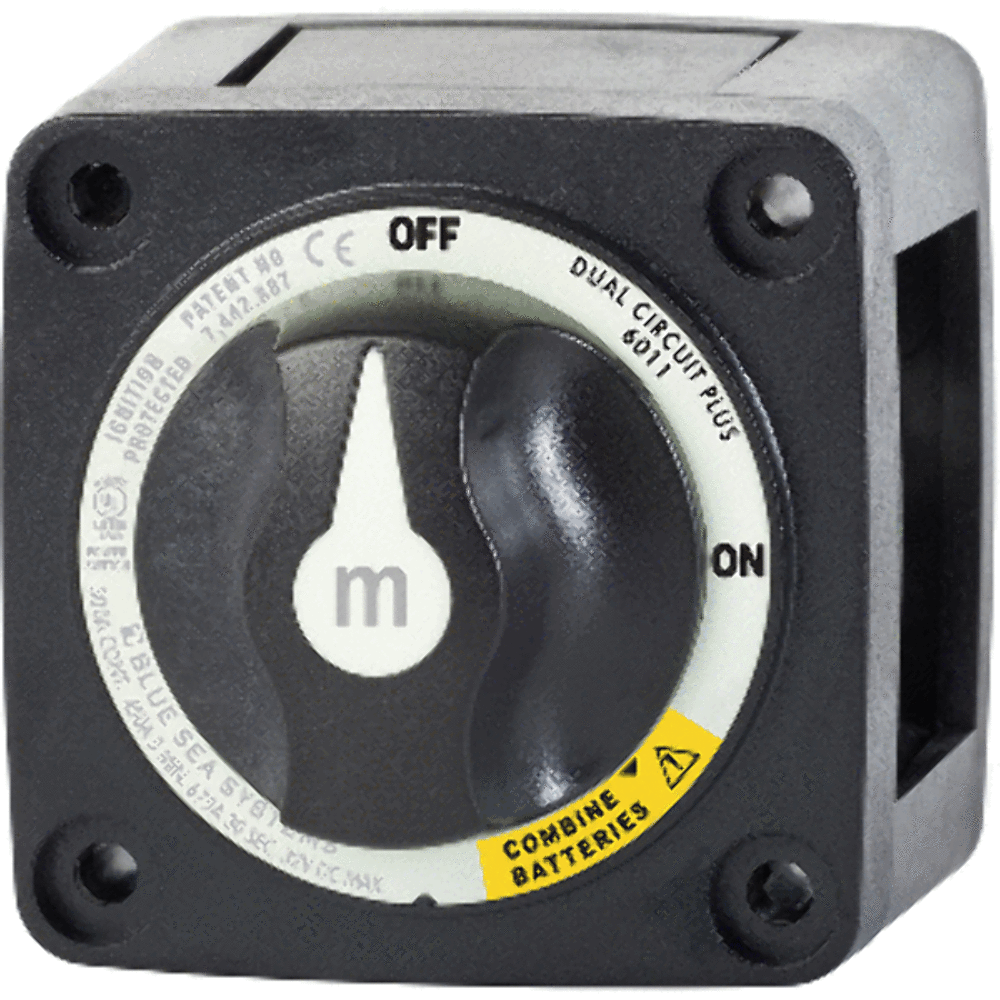

m-Series Mini Dual Circuit Plus Battery Switch BlackSimultaneously switches two isolated battery banks or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption.Switch Type: Dual Circuit PlusColor: BlackSwitch Positions: 3Battery Combine: YesAlternator Field Disconnect: NoMaximum Voltage: 32V DCContinuous Rating : 300AIntermittent Rating : 450A (5 min)Cranking Rating 10 sec: 1000ACranking Rating 1 min: 650ABattery Inputs: 2Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)Cable Size to Meet Ratings: 4/0 AWG (120mm²)Mounting Holes: Accept #10 ScrewTerminal Stud Size: 3/8"-16 (M10)Terminal Stud Torque: 120 in-lb (13.56 Nm)Weight: 0.80lb (0.36 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 6011200
Internal Code: 49219
Brochure:
Instalation Guide:
Video:
