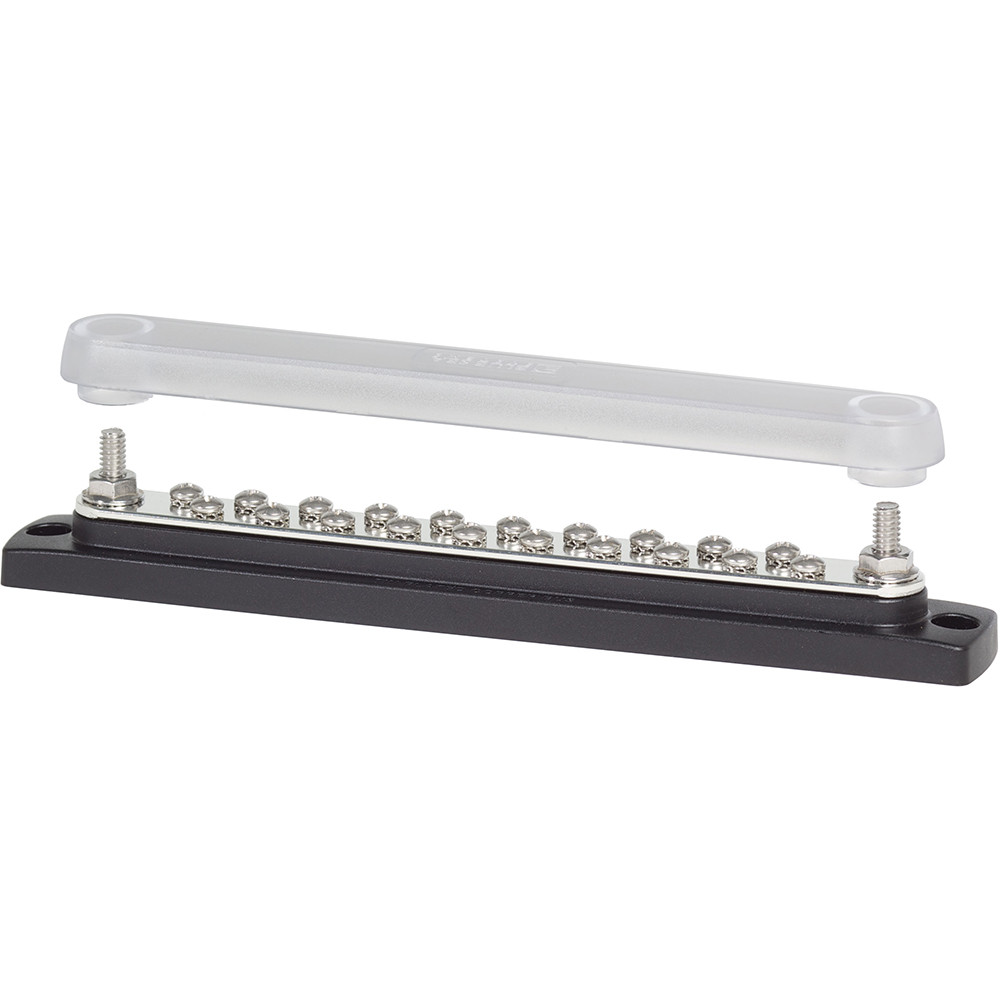

Blue Sea 2312 Common Busbar 150A w Cover 20x8-32 Screw Terminal Boat Marine

Product Description

DESCRIPTION:
150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover

PN: 2312

Stud design provides direct terminal to bus contact for low resistant connection
Stainless steel studs and screws allow high torquing for excellent electrical contact
Tin-plated copper bus for maximum conductivity and resistance to corrosion
UL 94-VO rated (self extinguishing) base material resists high heat
Press on insulating cover attaches to studs and allows unobstructed wire access
Raised bus provides easy access to multiple wires on a single screw

Continuous Amperage	130 Amperes AC 150 Amperes DC
Maximum Voltage Rating	300 Volts AC 48 Volts DC
Bus Material	Tin-Plated Copper CDA 110/UNS11000
Base Material	Glass Reinforced Polycarbonate
Cover Material	Polycarbonate
Studs	Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal
Screws	Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal
Weight	0.58Lb

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

BRAND:
Blue Sea Systems

Internal Code: 28234
Manufacturer Part Number: 2312
