Product Description
BRAND: BEP Marine
DESCRIPTION:

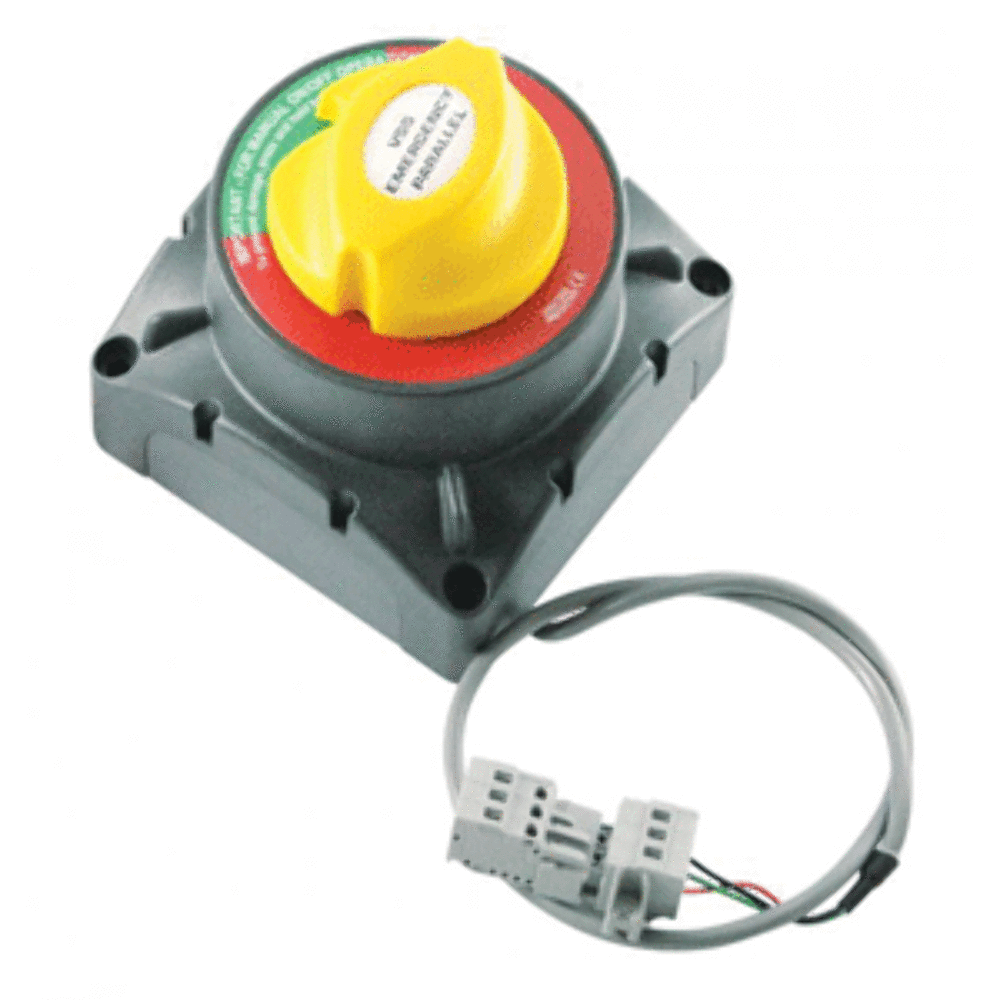

Dual Operation VSS Switch HD Optic 12/24V 500AThis Voltage Sensitive Switch (VSS) automatically senses connected battery bank voltage and provides optimal efficient charging of the second bank. The VSS allows for independent battery banks to be combined or isolated based on the presence of a charging source (such as an engine alternator or battery charger) while also offering remotely activated high current emergency parallel connection. Designed and constructed for longevity in the marine environment with tinned copper conductors St Steel nuts and high temperature fibre reinforced plastics. The units are ignition protected provide On/Off switching operation and may be recessed or surface mounted. The remote emergency parallel function can be operated through a momentary button on the dash which will parallel the batteries for 10 minutes. Once this 10 minutes has passed if the voltage is high enough the voltage sensitive switch will stay engaged. If not it will disengage.Features:Dual battery sensingManual override optionDual 12/24 volt operation (both banks must be same voltage)Low power consumption (Lowered cut in voltage (13.3/26.6V) suits low output alternators and high temperature environmentsTechnical Specifications:Volts 12/24VRating 500ADimensions (L x W x H) 4" x 4" x 4.3"In the Box:Parallel Switch Instruction manual*Sold as an Individual WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Number: 720-MDVSO
Internal Code: 58648
Brochure: https://productimageserver.com/literature/brochure/58648BR.pdf
Instalation Guide:
Video:
