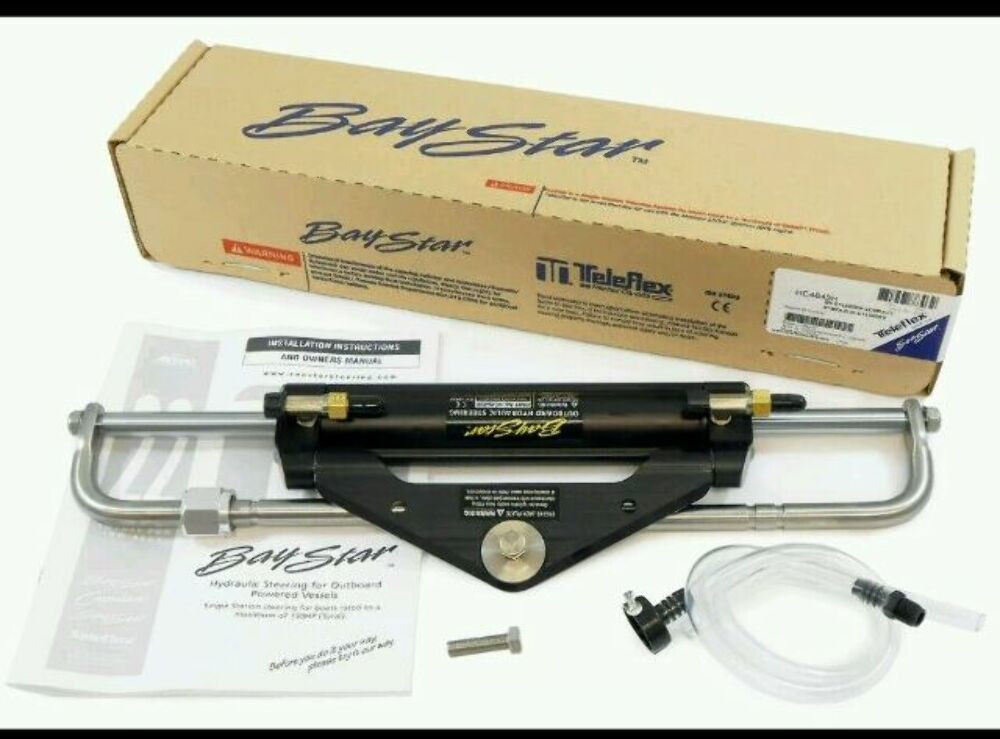

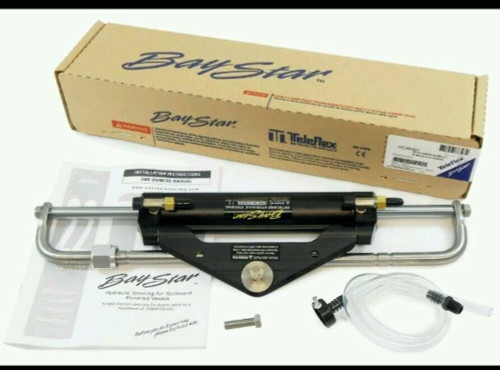

Baystar HC4645-3 Hydraulic Steering Cylinder for Outboard 150HP MAX Seastar Boat
$616.99
Product Description
BRAND: SeaStar Solutions
DESCRIPTION:
- SeaStar Solutions HC4645H BayStar Compact Hydraulic Steering Cylinder, Outboard Engines.
- This balanced cylinder features a compact design that fits most splashwells.
- BayStar allows you to install all of the safety, reliability and comfort of hydraulic steering onto your boats rated up to MAX. 150HP.
- Combine this with the superior design, rigid ISO quality control, the finest materials and precision manufacturing-BayStar continues the tradition bringing comfort and safety to boating.
FEATURES:
- Balanced cylinder, featuring a compact design that fits most splash wells.
- Baystar provides hydraulic steering performance for the lower horsepower range.
- Ease of installation - can be fitted with the motor already hung on the transform
- Balanced cylinder for even turns lock to lock
- Universal Design - will fit most engines with the removal of 2 bolts
- High levels of steering efficiency - do drag links or off-sets
- Stainless steel and anodized aluminum construction
DIMENSIONS
- Stroke 8" (203mm)
- Shaft Diameter .63" (16.0mm)
SEAL REPARI KIT
- HP4600
APPLICATION NOTE:
- See last picture.
- MAXIMUM 150 HP Outboard Engines
- Mercury Optimax should use SeaStar cylinders. Not recommended for use on high performance engines.
APPLICATION DETAILS:
FORCE
- 1985-DATE 90-150 HP
HONDA
- 1992-DATE 30-90 HP
- 2001-DATE 150 HP (High performance 150HP engines should use SeaStar)
- 2003-DATE BF135 HP
JOHNSON / EVINRUDE
- 1991-DATE 40-150 HP
- 1997-DATE 75-150 HP FICHT (High performance 150HP engines should use SeaStar)
MERCURY
- 1984-DATE 75-150 HP (High performance 150HP engines should use SeaStar)
NISSAN
- 1990-DATE 120-140 HP
SUZUKI
- 1986-DATE 150 HP (High performance 150HP engines should use SeaStar)
- 1987-2002 115-140 HP (Requires Spacer Kit Part No. HO5090)
- 1990-2000 90-100 HP
- 1998-DATE 40-70 4-Stroke (Requires Spacer Kit Part No. HO5090)
TOHATSU
- 1990-DATE 40-140 HP
YAMAHA
- 1998-DATE 40-50 HP (Engine clamp brackets must be cut or ground,and the engine through bolted onto the transom, or interference will occur, restricting engine trim and tilt)
- 1998-DATE 60 HP (Steering hook Yamaha Part No. 63D-48511-00-4D must be installed)
- 1986-DATE 70-90 HP (Requires Spacer Kit Part No. HO5090)
- 1997-DATE 80-150 HP 4-Stroke
Manufacturer PN: HC4645-3
Internal Code: HC46453
DESCRIPTION:
- SeaStar Solutions HC4645H BayStar Compact Hydraulic Steering Cylinder, Outboard Engines.
- This balanced cylinder features a compact design that fits most splashwells.
- BayStar allows you to install all of the safety, reliability and comfort of hydraulic steering onto your boats rated up to MAX. 150HP.
- Combine this with the superior design, rigid ISO quality control, the finest materials and precision manufacturing-BayStar continues the tradition bringing comfort and safety to boating.
FEATURES:
- Balanced cylinder, featuring a compact design that fits most splash wells.
- Baystar provides hydraulic steering performance for the lower horsepower range.
- Ease of installation - can be fitted with the motor already hung on the transform
- Balanced cylinder for even turns lock to lock
- Universal Design - will fit most engines with the removal of 2 bolts
- High levels of steering efficiency - do drag links or off-sets
- Stainless steel and anodized aluminum construction
DIMENSIONS
- Stroke 8" (203mm)
- Shaft Diameter .63" (16.0mm)
SEAL REPARI KIT
- HP4600
APPLICATION NOTE:
- See last picture.
- MAXIMUM 150 HP Outboard Engines
- Mercury Optimax should use SeaStar cylinders. Not recommended for use on high performance engines.
APPLICATION DETAILS:
FORCE
- 1985-DATE 90-150 HP
HONDA
- 1992-DATE 30-90 HP
- 2001-DATE 150 HP (High performance 150HP engines should use SeaStar)
- 2003-DATE BF135 HP
JOHNSON / EVINRUDE
- 1991-DATE 40-150 HP
- 1997-DATE 75-150 HP FICHT (High performance 150HP engines should use SeaStar)
MERCURY
- 1984-DATE 75-150 HP (High performance 150HP engines should use SeaStar)
NISSAN
- 1990-DATE 120-140 HP
SUZUKI
- 1986-DATE 150 HP (High performance 150HP engines should use SeaStar)
- 1987-2002 115-140 HP (Requires Spacer Kit Part No. HO5090)
- 1990-2000 90-100 HP
- 1998-DATE 40-70 4-Stroke (Requires Spacer Kit Part No. HO5090)
TOHATSU
- 1990-DATE 40-140 HP
YAMAHA
- 1998-DATE 40-50 HP (Engine clamp brackets must be cut or ground,and the engine through bolted onto the transom, or interference will occur, restricting engine trim and tilt)
- 1998-DATE 60 HP (Steering hook Yamaha Part No. 63D-48511-00-4D must be installed)
- 1986-DATE 70-90 HP (Requires Spacer Kit Part No. HO5090)
- 1997-DATE 80-150 HP 4-Stroke
Manufacturer PN: HC4645-3
Internal Code: HC46453
