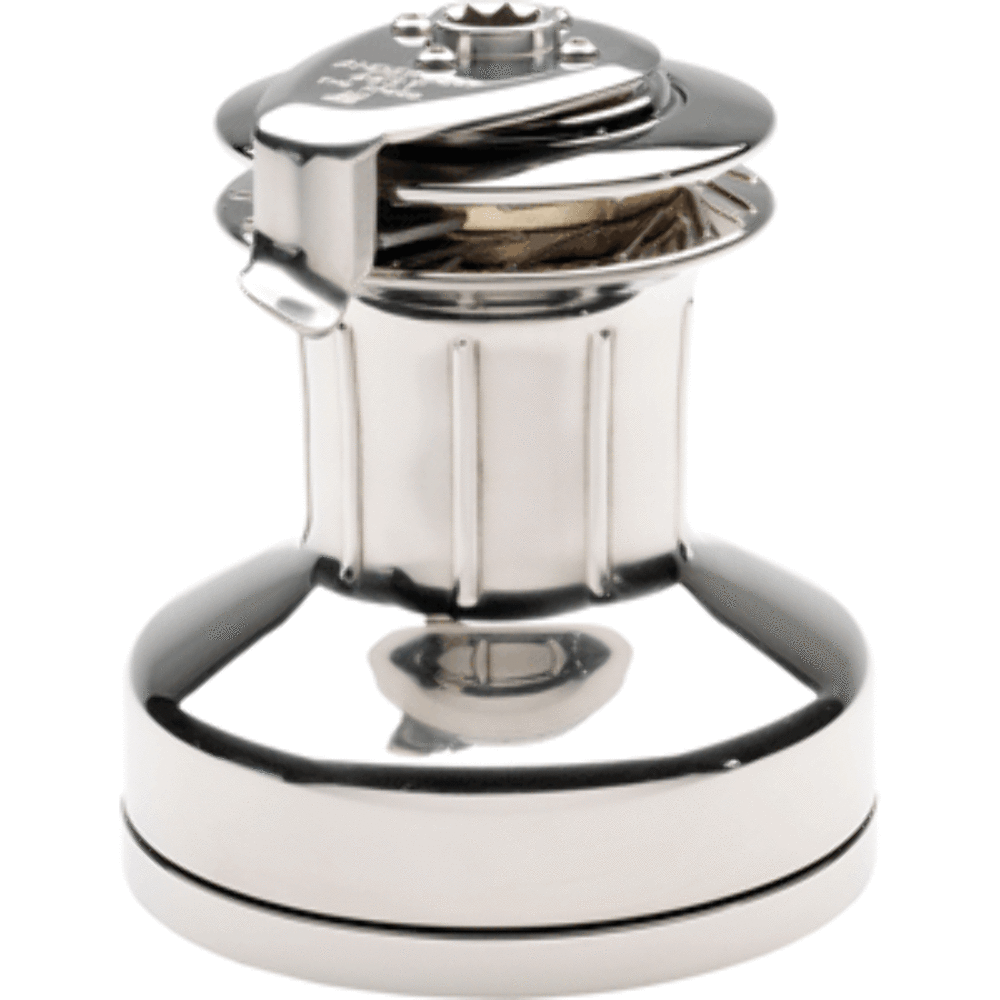

- ANDERSEN 46 ST FS 2-Speed Self-Tailing Manual Winch Full St Steel RA2046010000
Categories
)
Product Description
BRAND: ANDERSEN
DESCRIPTION:
40 ST FS 2-Speed Self-Tailing Manual Winch Full St SteelIf you take pride in having your yacht look its best ANDERSEN's Full Stainless Self-Tailing Winch creates the dock-stopping appeal you desire. It combines all the convenience and power of ANDERSEN's self-tailing winch with a stunning all St Steel look.From top to bottom the drive shaft stripper arm self-tailing jaws drum and upper & lower trim rings are manufactured in highest quality and beautifully polished grade 316 St Steel. The dramatic result is a highly reflective winch that becomes a highlight of the boat and a true reflection of your yachting pride. We like to say “Full Stainless – Beyond Good Looks.”As with all ANDERSEN Winches our Full Stainless Self-Tailing winch features the exclusive St Steel Power Rib drum for maximum power and extended line life. This model also uses our exclusive self-tailing device that automatically accommodates a wide range of different line sizes.MaterialsAndersen winch drums are produced from grade 316L St Steel cold formed in stages during manufacture to further increase strength and hardness as it takes its final form. The resulting construction is lightweight yet stiff and unyielding. Drive shafts are in grade 329 duplex St Steel. Pawls are cut from a cold pressed profile in grade 316 St Steel and are virtually unbreakable. The upper center stems are manufactured from aluminum bronze for ultimate durability. The combination of materials and design contribute to a lightweight rigid final assembly that enhances. the mechanical efficiency of the winch. Andersen winces are of similar weight to winches with aluminum drums but are far more durable. Power RibANDERSEN Winches© feature the Power Rib. Unlike other winches with abrasive drum surfaces ANDERSEN winch drums have vertical ribs running up the surface. This combined with the smooth polished St Steel gives a maximum grip and minimum wear on ropes reducing the replacements costs of sheets and halyards. What's more the Power Rib principle simply makes sailing more pleasurable. Fewer turns on the winch make tacking easier. Sheets can be gently eased out without harsh snatching and the risks of overrides and jammed sheets are significantly reduced. The grip provided by the ribs will remain the same year after year unlike many other winches with an abrasive or sandpaper-like surface. Such surfaces have a tendency to wear down both ropes and themselves.Power RatioPower Ratio is the mechanical advantage of the winch and is calculated as follows:length of handle x gear ratio radius of drumThe pull of the winch is based on the Power Ratio and not just on the physical size of the winch or the diameter of the drum. The Power Ratio is used to determine the load the winch may handle as follows:pull of handle (kg x Power Ratio = pull of winch (kg).This means that by applying a load of 10kg using a 10" standard handle on a Power Ratio 40:1 winch the winch can pull 400kg assuming that the winch is 100% efficient. This is not possible in practice as the efficiency is reduced by internal mechanical friction losses.FeaturesAnderson winch drums incorporate the distinctive Power Rib which ensures a controlled grip on the line at all times whether trimming or easing. The highly polished St Steel surface minimizes vertical friction and allows the loaded rope turns to slide easily upward as the drum rotates without the shuddering and excessive rope wear seen on winches that rely on a rough surface finish for grip. St Steel roller bearings and ball bearings carry the highest drum loads to the center stem of the winch minimizing efficiency losses due to friction. The self tailing arm can be rotated through 360 degrees for optimum positioning (40ST and larger). St Steel self-tailing jaws adjust automatically to suit various rope sizes. Andersen winches are designed for simple straightforward installation and maintenance. Servicing is only required every two years or so under normal use. Specifications:Drum Ø:75mm(3-1/2")Base Ø:152mm(7-1/16")Height:174mm(8-1/4")Line Entry:71mm(3-9/16")Line Size:8-14mm(1/8 11/16")Weight;4.9kg(17.2lbs)Gear ratio 1st speed2.8 : 1Gear ratio 2nd speed:8.4 : 1Power ratio 1st speed:15.7 : 1Power ratio 2nd speed:47.1 : 1
Manufacturer Part Number: RA2046010000
Internal Code: 55006
Brochure:
Instalation Guide:
Video:
Need more info?
Ask a question.
We answer questions quickly....
DESCRIPTION:
40 ST FS 2-Speed Self-Tailing Manual Winch Full St SteelIf you take pride in having your yacht look its best ANDERSEN's Full Stainless Self-Tailing Winch creates the dock-stopping appeal you desire. It combines all the convenience and power of ANDERSEN's self-tailing winch with a stunning all St Steel look.From top to bottom the drive shaft stripper arm self-tailing jaws drum and upper & lower trim rings are manufactured in highest quality and beautifully polished grade 316 St Steel. The dramatic result is a highly reflective winch that becomes a highlight of the boat and a true reflection of your yachting pride. We like to say “Full Stainless – Beyond Good Looks.”As with all ANDERSEN Winches our Full Stainless Self-Tailing winch features the exclusive St Steel Power Rib drum for maximum power and extended line life. This model also uses our exclusive self-tailing device that automatically accommodates a wide range of different line sizes.MaterialsAndersen winch drums are produced from grade 316L St Steel cold formed in stages during manufacture to further increase strength and hardness as it takes its final form. The resulting construction is lightweight yet stiff and unyielding. Drive shafts are in grade 329 duplex St Steel. Pawls are cut from a cold pressed profile in grade 316 St Steel and are virtually unbreakable. The upper center stems are manufactured from aluminum bronze for ultimate durability. The combination of materials and design contribute to a lightweight rigid final assembly that enhances. the mechanical efficiency of the winch. Andersen winces are of similar weight to winches with aluminum drums but are far more durable. Power RibANDERSEN Winches© feature the Power Rib. Unlike other winches with abrasive drum surfaces ANDERSEN winch drums have vertical ribs running up the surface. This combined with the smooth polished St Steel gives a maximum grip and minimum wear on ropes reducing the replacements costs of sheets and halyards. What's more the Power Rib principle simply makes sailing more pleasurable. Fewer turns on the winch make tacking easier. Sheets can be gently eased out without harsh snatching and the risks of overrides and jammed sheets are significantly reduced. The grip provided by the ribs will remain the same year after year unlike many other winches with an abrasive or sandpaper-like surface. Such surfaces have a tendency to wear down both ropes and themselves.Power RatioPower Ratio is the mechanical advantage of the winch and is calculated as follows:length of handle x gear ratio radius of drumThe pull of the winch is based on the Power Ratio and not just on the physical size of the winch or the diameter of the drum. The Power Ratio is used to determine the load the winch may handle as follows:pull of handle (kg x Power Ratio = pull of winch (kg).This means that by applying a load of 10kg using a 10" standard handle on a Power Ratio 40:1 winch the winch can pull 400kg assuming that the winch is 100% efficient. This is not possible in practice as the efficiency is reduced by internal mechanical friction losses.FeaturesAnderson winch drums incorporate the distinctive Power Rib which ensures a controlled grip on the line at all times whether trimming or easing. The highly polished St Steel surface minimizes vertical friction and allows the loaded rope turns to slide easily upward as the drum rotates without the shuddering and excessive rope wear seen on winches that rely on a rough surface finish for grip. St Steel roller bearings and ball bearings carry the highest drum loads to the center stem of the winch minimizing efficiency losses due to friction. The self tailing arm can be rotated through 360 degrees for optimum positioning (40ST and larger). St Steel self-tailing jaws adjust automatically to suit various rope sizes. Andersen winches are designed for simple straightforward installation and maintenance. Servicing is only required every two years or so under normal use. Specifications:Drum Ø:75mm(3-1/2")Base Ø:152mm(7-1/16")Height:174mm(8-1/4")Line Entry:71mm(3-9/16")Line Size:8-14mm(1/8 11/16")Weight;4.9kg(17.2lbs)Gear ratio 1st speed2.8 : 1Gear ratio 2nd speed:8.4 : 1Power ratio 1st speed:15.7 : 1Power ratio 2nd speed:47.1 : 1
Manufacturer Part Number: RA2046010000
Internal Code: 55006
